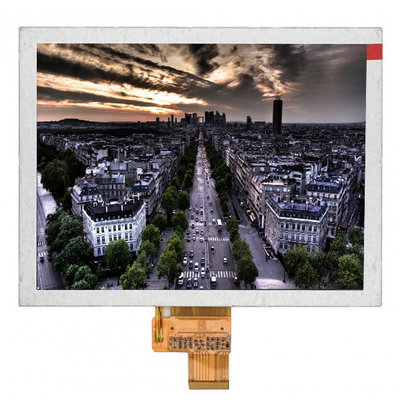

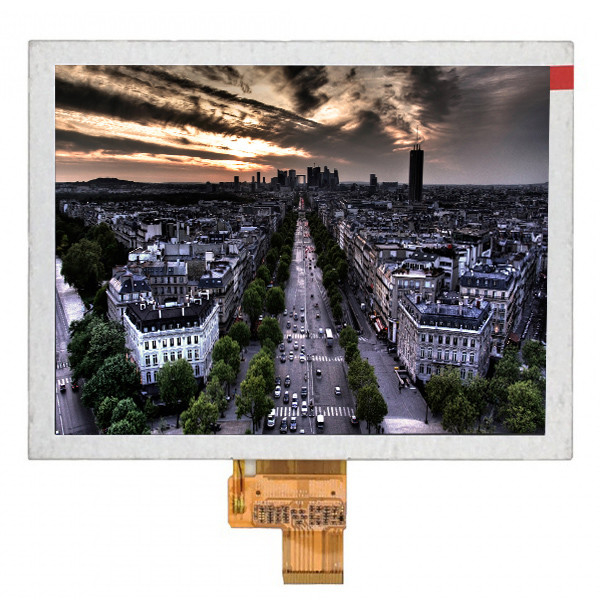

8.0 inch lcd panel RGB Vertical Stripe TM080TDHG01-42 lcd screen 1024(RGB)×768 Industrial display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM080TDHG01-42 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TM080TDHG01-42 | Panel Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 160PPI | Display Area: | 162.048(W)×121.536(H) Mm |
| Bezel Opening: | 164.65(W)×124.14(H) Mm | Outline Size: | 183(W)×141(H) ×3.7(D) Mm |
| Weight: | 189g | Application: | Industrial |
Product Description
8.0 inch lcd panel RGB Vertical Stripe TM080TDHG01-42 lcd screen 1024(RGB)×768 Industrial display
TM080TDHG01-42 Product details :
| TIANMA LCD SCREEN TM080TDHG01-42 | |
| Manufacturer | TIANMA |
| Model Name | TM080TDHG01-42 |
| Screen Size | 8.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 160PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 162.048 × 121.536 (H×V) |
| Outline(mm) | 183 × 141 × 3.7 (H×V×D) |
| Bezel Area(mm) | 164.65 × 124.14 (H×V) |
| Treatment | Clear |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | 3S9P WLED , 30K hours , No Driver |
| Mass | 189g |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Voltage Supply | 3.3/12.6/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 8.0 inch lcd panel RGB Vertical Stripe TM080TDHG01-42 lcd screen 1024(RGB)×768 Industrial display | |
TM080TDHG01-42 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,
please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
TM080TDHG01-42 Shippment & Packing
TM080TDHG01-42 Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
TM080TDHG01-42 Import Taxes or Duties:
1.- Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are
afforded by buyer.
2.- Please check with you country’s Customs office to determine what these additional costs will be before purchase.
3.- Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill invoice, or how to describe the item, etc..
TM080TDHG01-42 Guarantee:
1.All items will be strictly tested before shipping.
2. Warranty is 90 days.
TM080TDHG01-42 FAQ:
Q: Can You declare my order of TM080TDHG01-42 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of TM080TDHG01-42?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of TM080TDHG01-42 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
