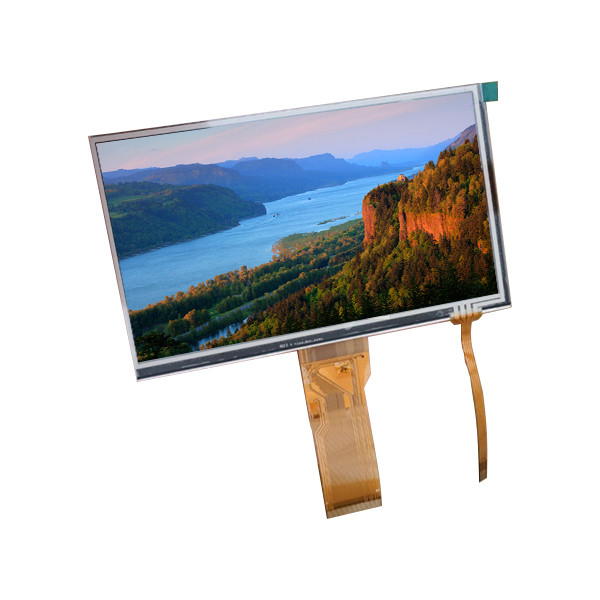

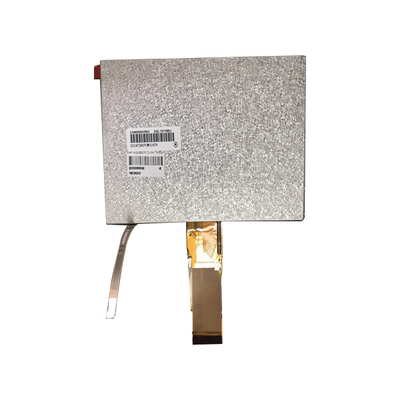

TM070RBH10-41 lcd panel lcd screen 800(RGB)×480 7.0 inch lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070RBH10-41 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TM070RBH10-41 | Diagonal Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 [WVGA] 134PPI | Active Area: | 154.08(H)×85.92(V) Mm |
| Outline Dim.: | 164.9(H)×100(V) ×7.1(D) Mm | Luminance: | 350 Cd/m² (Typ.) |
| Weight: | 195g (Typ.) | Designed For: | Industrial / Digital Photo Frame / Portable DVD Player / MP3 PMP |
Product Description
TM070RBH10-41 lcd panel lcd screen 800(RGB)×480 7.0 inch lcd display
TM070RBH10-41 Product details :
| TIANMA LCD SCREEN TM070RBH10-41 | |
| manufacturer | TIANMA |
| Model Name | TM070RBH10-41 |
| screen size | 7.0 inch |
| Screen type | LCM , a-Si TFT-LCD |
| Resolution | 800(RGB)×480 (WVGA) 134PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 154.08 × 85.92 (H×V) |
| physical dimension | 164.9 × 100 × 7.1 (H×V×D) |
| surface treatment | Antiglare |
| Brightness | 350 cd/m² (Typ.) |
| Contrast | 1000 : 1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/60/80 (Typ.)(CR≥10) |
| Responding time | 25 (Typ.)(Tr+Td) ms |
| Number of color | 262K/16.7M 49% NTSC |
| Backlight type | 3S8P WLED , 20K hours , No Driver |
| Panel weight | 195g (Typ.) |
| Apply to | Industrial / Digital Photo Frame / Portable DVD Player / MP3 PMP |
| Refresh rate | 60Hz |
| Touch function | 4-wire Resistive Touch |
| signal system | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Supply voltage | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum rating | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| TM070RBH10-41 lcd panel lcd screen 800(RGB)×480 7.0 inch lcd display | |
TM070RBH10-41 Our service:
> Fast delivery
> 90days warranty
> original,High quality
> Full tested before shipping.
TM070RBH10-41 Payment:
1. We accept Escrow, Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....
2. If you have any problems of payment, please contact us.
TM070RBH10-41 Shippment & Packing
TM070RBH10-41 SHIPPING:
1 We will ship the items within 3working days after the payment is reached.
2 We often ship to customers by UPS/DHL/Fedex and ect,We would like to ship to you which is convenient to you. Please contact us directly and we will use your preferred ways.
3 We are not responsible for any accidents, delays or other issues that we couldn’t control, But we will contact the shipping company which is our long term cooperation.
4 Any import fees or charges are the buy’s responsibility.
TM070RBH10-41 Refund&Return:
1. If the item is defective, pls notify us within 3 days after receiving.
2. items should be returned with original package if possible.
TM070RBH10-41 FAQ:
Q: If I order TM070RBH10-41 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for TIANMA TM070RBH10-41 ?
A: Of course!sample order is welcome !
Q: How to make payment for TIANMA TM070RBH10-41 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of TM070RBH10-41 at a very low value ?
A: Yes , we can . pls inform us before shipping .
