TM057KDH03 Original 5.7 inch LCD Display for Industrial Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM057KDH03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TM057KDH03 | Panel Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA, 70PPI | Display Area: | 115.2(W)×86.4(H) Mm |
| Outline Size: | 144(W)×104.6(H)×12.8(D) Mm | Bezel Opening: | 118.2(W)×89.4(H) Mm |
| Panel Weight: | 160g | Application: | Industrial |
Product Description

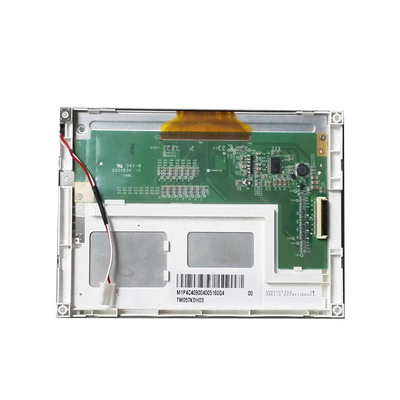

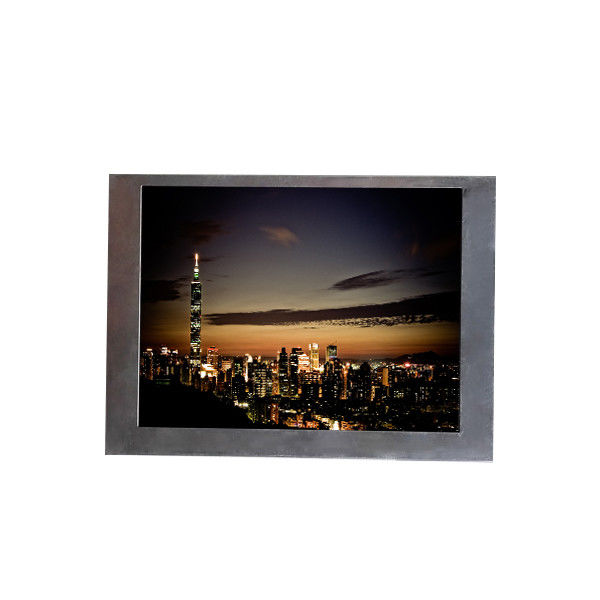

TM057KDH03 Original 5.7 inch LCD Display for Industrial Equipment
TM057KDH03 Product details :
| TIANMA LCD SCREEN TM057KDH03 | |
| Manufacturer | TIANMA |
| Model Name | TM057KDH03 |
| Screen Size | 5.7 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 320(RGB)×240 (QVGA) 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | 144 × 104.6 × 12.8 (H×V×D) |
| Bezel Area(mm) | 118.2 × 89.4 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% NTSC |
| Backlight | 3S5P WLED , 50K hours , No Driver |
| Mass | 160g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

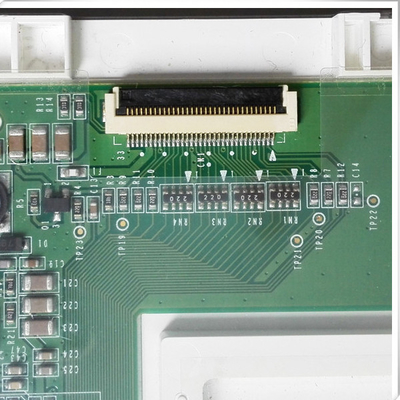

| Signal Type | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
| TM057KDH03 Original 5.7 inch LCD Display for Industrial Equipment | |
TM057KDH03 Payment:
1. Our parts can guarantee a warranty period of more than 90 days. If the parts are damaged due to improper operation, there is no warranty.
2. regarding payment, we can accept bank transfer, PayPal, Western Union, quick cash, Alipay and Ecrow terms.
3. The price is quoted at the right time, but may be changed one week later due to exchange rate fluctuations and changes in order quantity.
4. If you receive some items of imperfect quality, we will resiponsibly arrange for a refund or replacement. But objects must remain in their original state.
5. Inventory availability is subject to previous sales. All references are new and unused, original packaging, unless specified.
6. Prior to the order RE-VALIDATE offer.
TM057KDH03 Shippment & Packing
TM057KDH03 About Shipping:
1. We will test them strictly before shipping.
2. We will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 6-15 days,which will be different for different countries.
3. Canada 5-15 working days.
4. France / Spain / Italy /Germany may take 5-15 working days.
5. Eastern Europe may take up to 6-16 working days.
6. Brazil / South America may take up to 7-17 working days.
7. Shipped by DHL Express (Need 5-10 working days to arrive)
TM057KDH03 After Service :
We offer guarantee of quality for 45-90 Days for all the parts we ship out .
1st, we will state the condition of the parts honestly when quote ;
2nd, we will test the quality of the goods before shipment ;
3rd, we will be responsilbe when the parts get in any problems .
TM057KDH03 FAQ:
Q: Can You declare my order of TM057KDH03 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TM057KDH03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of TM057KDH03 ?
A: Of course!sample order is welcome !
Q: How to make payment of TM057KDH03 ?
A: We accept T/T , Paypal , western union .
