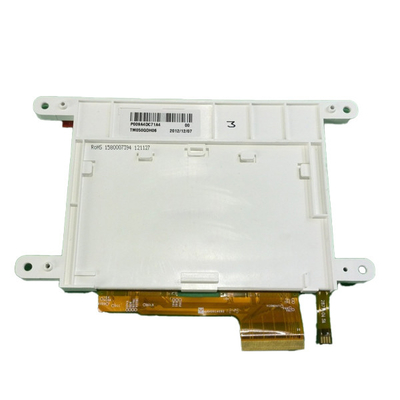

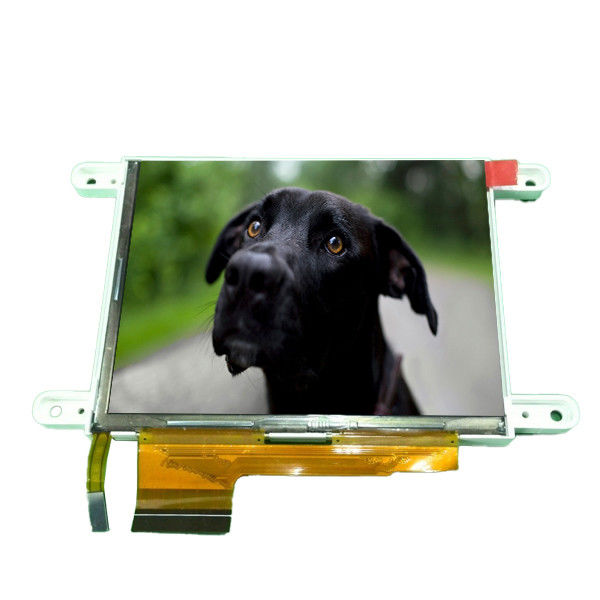

TM050QDH06 5.0 inch 640×480 lcd screen display monitors
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM050QDH06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TM050QDH06 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 160PPI | Display Area: | 101.568(W)×76.176(H) Mm |
| Outline Size: | 113.6(W)×88.4(H)×10(D) Mm | Lamp Type: | 3S5P WLED , 50K Hours , Without Driver |
| Panel Weight: | 80.0±4.0g | Application: | Industrial |
Product Description
TM050QDH06 5.0 inch 640×480 lcd screen display monitors
TM050QDH06 Product details :
| TIANMA LCD SCREEN TM050QDH06 | |
| Manufacturer | TIANMA |
| Model Name | TM050QDH06 |
| Screen Size | 5.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 160PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 101.568 × 76.176 (H×V) |
| Outline(mm) | 113.6 × 88.4 × 10 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 3S5P WLED , 50K hours , No Driver |
| Mass | 80.0±4.0g |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
| Voltage Supply | 3.3/5.0/15.0/-8.2V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| TM050QDH06 5.0 inch 640×480 lcd screen display monitors | |
TM050QDH06 Competitive advantage:
1. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.
2. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.
3. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
4. Delivery Time: We have a lot of stock, after receiving the payment within 24-72 hours to arrange to send
5. Reasonable Price: We’ll exact control each producing process to reduce cost for our customers.
After clients receive the quotation, we’ll show you the rationality of the price and the difference between our products and other supplier’s products.
TM050QDH06 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item, please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
TM050QDH06 Shippment & Packing
TM050QDH06 Warranty:
1.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).
2.- We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.- One we get the returned items, we will send the replaced ones back as soon as possible.
5.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts
TM050QDH06 FAQ:
Q: Can You declare my order of TM050QDH06 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TM050QDH06 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of TM050QDH06 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of TM050QDH06 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
