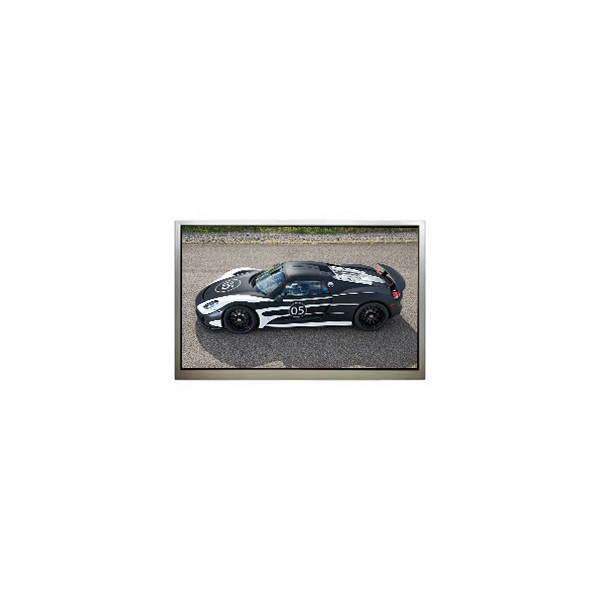

HSD080IDW1-E01 8.0 Inch 800*480 Resolution LCD Display car Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD080IDW1-E01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HSD080IDW1-E01 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480, WVGA 116PPI | Active Area: | 176.64(W)×99.36(H) Mm |
| Outline Dim.: | 192.8(W)×116.9(H)×6.7(D) Mm | Frequency: | 60Hz |
| Display Colors: | 262K/16.7M 50%NTSC | Designed For: | Automotive Display |
Product Description
HSD080IDW1-E01 8.0 Inch 800*480 Resolution LCD Display car Panel
HSD080IDW1-E01 Product details :
| Brand | HannStar |
| Model P/N | HSD080IDW1-E01 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | 180.1(W)×103.4(H) mm |
| Outline Size | 192.8(W)×116.9(H)×6.7(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 50%NTSC |
| Lamp Type | 3S11PWLED, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 215g (Typ.) |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 60 pins FPC |
| Input Voltage | 3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C; Vibration Level: 2.9G (28.4 m/s²) |
HSD080IDW1-E01 About the quality:
All of our product will be testing before shipping . So you can be assured the quality of our products .
However, If you found any problem after received the goods , Please feel free contact to our saleman .
We will be willing to deal with your problem at the first time
HSD080IDW1-E01 About the payment:
Sample order :
A. Aliexpress
B. Paypal
C. Union Western
Large order:
HSBC bank (Company account)
HSD080IDW1-E01 Shippment & Packing
HSD080IDW1-E01 Packaging & Shipping:
Shipping by sea or air Express by DHL, FEDEX,UPS,TNT and so on Packed in standard exporting carton or as your request
Tips
1. Please make sure your address informations correct ,so the parts can safe delivery.
2. When you place orders,please inform me how to make the Commercial invoice(Customs invoice),without any requirements,we will make commercial invoice amount/value as lower as I can.
3. Customers please leave your contact details,such as e-mail address,mobile no.,when I take delivery,I need the above information,Thanks.
If you have any question,pls feel free to contact us,we are always at your service.
HSD080IDW1-E01 FAQ:
Q: Can you give me a discount if I need a large quantity of HSD080IDW1-E01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of HSD080IDW1-E01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods HSD080IDW1-E01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of HSD080IDW1-E01 ?
A: Of course!sample order is welcome !
