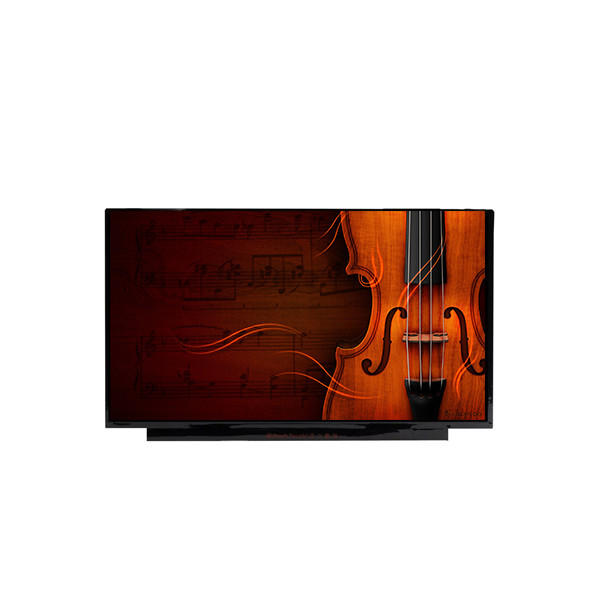

NV140QUM-N54 14.0 inch lcd display panel for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140QUM-N54 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NV140QUM-N54 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Pixel Format: | 3840(RGB)×2160, UHD 315PPI | Active Area: | 309.31(W)×173.99(H) Mm |
| Outline Dim.: | 315(H)×186.14(V)×4.3(D) Mm | Treatment: | Hard Coating (3H) |
| View Direction: | Symmetry | Designed For: | Laptop |
| Response Time: | 25 (Typ.)(Tr+Td) | Support Color: | 1.07B 99%sRGB |
Product Description
NV140QUM-N54 14.0 inch lcd display panel for Laptop
NV140QUM-N54 Product details :
| Brand | BOE |
| Model P/N | NV140QUM-N54 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 315PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.31(W)×173.99(H) mm |
| Bezel Opening | - |
| Outline Dim. | 315(H)×186.14(V)×4.3(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1400:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 1.07B 99%sRGB |
| Light Source | WLED [10S8P], 15K hours, With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes), eDP1.4 , HBR2 (5.4G/lane) , 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 70 °C |
NV140QUM-N54 Comprehensive Panel sources:
We have strong ability and system to seek for our customers the panels which have been end of production for a long time.
Professional acknowledgement of lcd panels industry to provide customers with effective advice:
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
NV140QUM-N54 Shippment & Packing
NV140QUM-N54 Shipping:
We cooperate with many express companies , for example , FEDEX , DHL , TNT , EMS and China Post Air Mail.
NV140QUM-N54 About warranty and Return:
We offer one year warranty for most of our products and professional technical support .
Please contact us if there are any problems and we will do my best to fix it out. Here is our misrepresented & unsatisfied merchandise policy.
-- 1. We accept returns for replacement or refund within 5 days after receipt of item(s). Items MUST be in their original condition, not worn or altered.
-- 2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.
NV140QUM-N54 FAQ:
Q: Can You declare my order of NV140QUM-N54 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NV140QUM-N54 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of NV140QUM-N54 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of NV140QUM-N54 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
