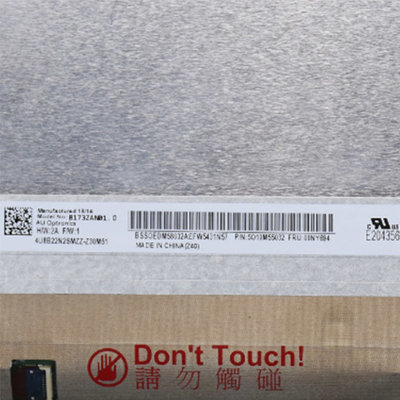

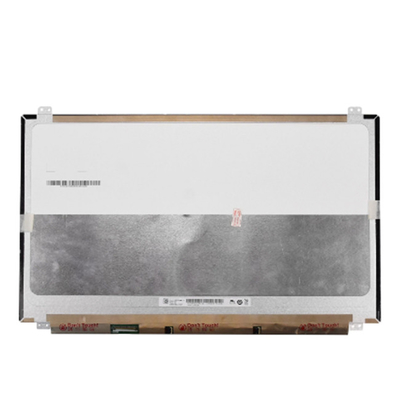

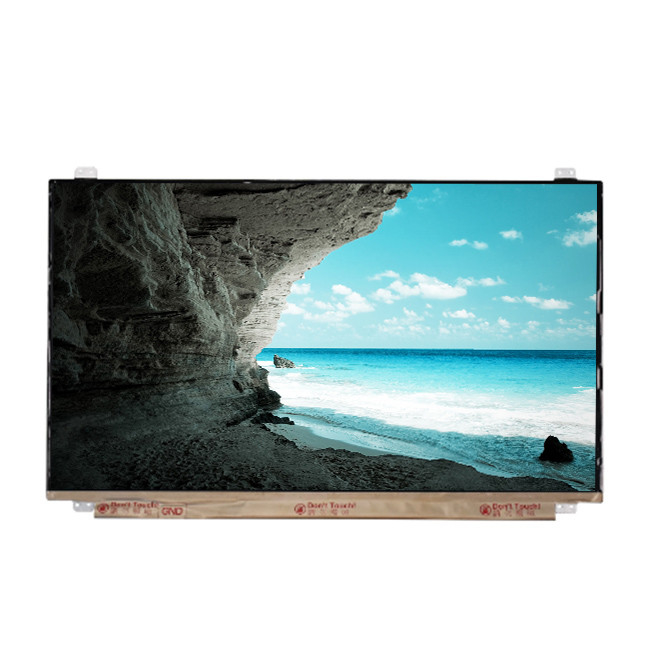

B173ZAN01.0 17.3 inch 3840x2160 EDP 40 pins TFT lcd display module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B173RTN02.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B173ZAN01.0 | Panel Size: | 17.3 Inches |
|---|---|---|---|
| Resolution: | 3840(RGB)*2160 UHD 255PPI | Display Area: | 382.08 * 214.92 Mm (H*V) |
| Outline Size: | 398.1 * 250.5 * 4 Mm (H*V*D) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color: | 16.7M, 100% Adobe RGB | Application: | Laptop |
Product Description
B173ZAN01.0 17.3 inch 3840x2160 EDP 40 pins TFT lcd display module
B173ZAN01.0 Product details :
| AUO LCD SCREEN B173ZAN01.0 (AUO109B) | |
| Manufacturer | AUO |
| Model Name | B173ZAN01.0 (AUO109B) |
| Diagonal Size | 17.3inches |
| Type | LCM, a-Si TFT-LCD |
| Pixel Number | 3840(RGB)*2160 UHD 255PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 382.08 * 214.92 mm (H*V) |
| Outline | 398.1 * 250.5 * 4 mm (H*V*D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (transmission) |
| Response Time | 27 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, normally black display, transmissive |
| Support Color | 16.7M, 100% Adobe RGB |
| Good View at | Symmetry |
| Light Source | WLED, 15K hours, with LED driver |
| Frame Rate | 60Hz |
| Outline Shape | Medium thickness (PCBA straight, 3.4~4.0mm thick) |
| Used for | Laptop |
| Interface Type | 40 pins eDP (4 Lanes), eDP1.3, connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B173ZAN01.0 17.3 inch 3840x2160 EDP 40 pins TFT lcd display module | |
B173ZAN01.0 Our Services:
We accept PAYPAL, TT, WESTERN UNIO
1) We offer real reliable quality information to the customer;
2) 30 days with guarantee with submitted for non-original parts;
3) Any problem about parts,pls let us know asap;
4) If goods should be returned,pls keep original condition;
5)All transportation costs shall be borne by the buyers.
B173ZAN01.0 Product packaging:
Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
B173ZAN01.0 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
B173ZAN01.0 Note:
1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!
2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!
3: After receiving the product, if there is a problem, please contact customer service to solve it!
B173ZAN01.0 FAQ:
Q: If I place order now,when will you ship the goods of B173ZAN01.0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of B173ZAN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How to make payment of B173ZAN01.0 ?
A: We accept T/T , Paypal , western union .
B173ZAN01.0 Shippment & Packing
