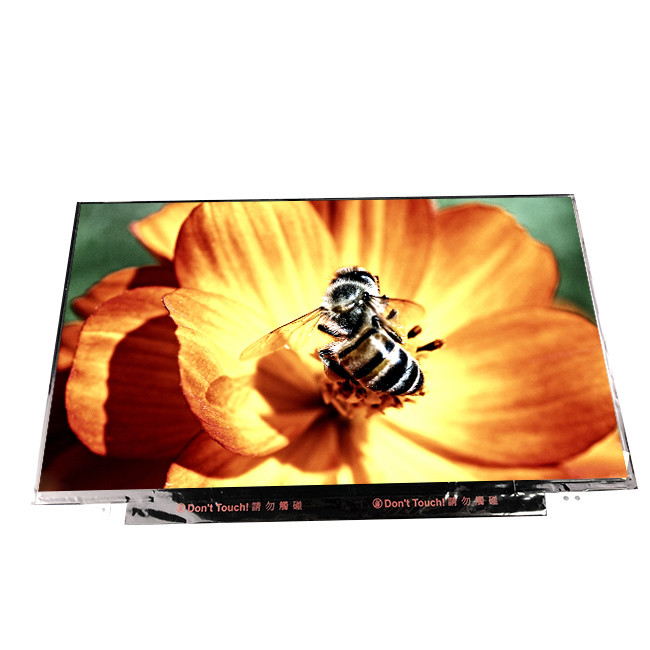

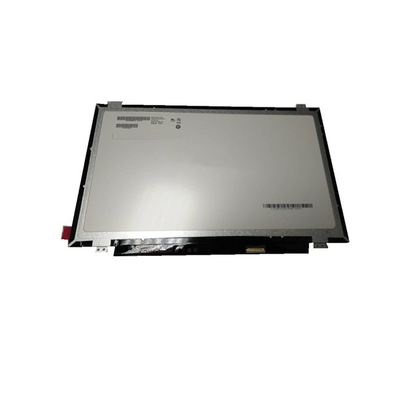

B140XTN03.9 AUO LCD 14 Inch 1366 * 768 LCD Laptop Display EDP 30 pins TFT Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140XTN03.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B140XTN03.9 | Panel Size: | 14.0 Inches |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 WXGA 112PPI | Display Area: | 309.399(H)*173.952(V) Mm |
| Outline Size: | 320.4(H)*205.1(V) *3.6(T) Mm | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
| Support Color: | 262K, 60% NTSC | Application: | Laptop |
Product Description
B140XTN03.9 AUO LCD 14 Inch 1366 * 768 LCD Laptop Display EDP 30 pins TFT Panel
B140XTN03.9 Product details :
| AUO LCD SCREEN B140XTN03.9 (AUO393C) | |
| Manufacturer | AUO |
| Model Name | B140XTN03.9 (AUO393C) |
| Diagonal Size | 14.0 inches |
| Type | a-Si TFT-LCD, LCM |
| Pixel Number | 1366(RGB)×768 WXGA 112PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 309.399(H)*173.952(V) mm |
| physical dimension | 320.4(H)*205.1(V) *3.6(T) mm |
| Surface | Mirror (Haze 0%), Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (transmission) |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, normally white display, transmissive |
| Support Color | 262K, 60% NTSC |
| Light Source | WLED, 15K hours, with LED driver |
| Frame Rate | 60Hz |
| Application | Laptop |
| Appearance style | Medium thickness (PCBA straight, 3.4~4.0mm thick) |
| Interface Type | 30 pins eDP (1 Lane), connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B140XTN03.9 AUO LCD 14 Inch 1366 * 768 LCD Laptop Display EDP 30 pins TFT Panel | |
B140XTN03.9 Our Services:
We accept PAYPAL, TT, WESTERN UNIO
1) We offer real reliable quality information to the customer;
2) 30 days with guarantee with submitted for non-original parts;
3) Any problem about parts,pls let us know asap;
4) If goods should be returned,pls keep original condition;
5)All transportation costs shall be borne by the buyers.
B140XTN03.9 Product packaging:
Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
B140XTN03.9 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
B140XTN03.9 FAQ:
Q: How long will I receive my goods B140XTN03.9 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of B140XTN03.9 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of B140XTN03.9 ?
A:Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
B140XTN03.9 Shippment & Packing
