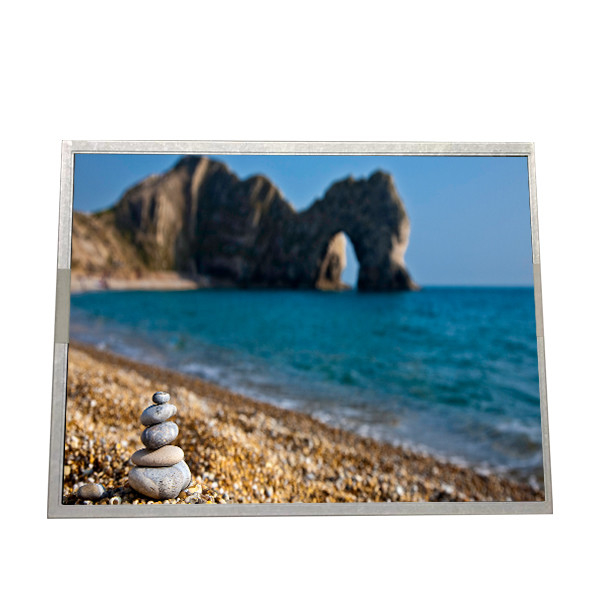

AC121SA02 12.1 inch 800×600 lcd display screen panel Replacement maintenance
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AC121SA02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AC121SA02 | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 82PPI | Display Area: | 246(W)×184.5(H) Mm |
| Bezel Opening: | 249.0(W)×187.5(H) Mm | Outline Size: | 260.5(W)×203(H)×10(D) Mm |
| Panel Weight: | 580g (Typ.) | Application: | Industrial |
Product Description
AC121SA02 12.1 inch 800×600 lcd display screen panel Replacement maintenance
AC121SA02 Product details :
| Mitsubishi LCD SCREEN AC121SA02 | |
| Manufacturer | Mitsubishi |
| Model Name | AC121SA02 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×600 (SVGA) 82PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 246 × 184.5 (H×V) |
| Outline(mm) | 260.5 × 203 × 10 (H×V×D) |
| Bezel Area(mm) | 249.0 × 187.5 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 580g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , Connector 20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| AC121SA02 12.1 inch 800×600 lcd display screen panel Replacement maintenance | |
AC121SA02 About the quality:
All of our product will be testing before shipping . So you can be assured the quality of our products .
However, If you found any problem after received the goods , Please feel free contact to us .
We will be willing to deal with your problem at the first time .
AC121SA02 About the payment:
Sample order :
A. Paypal
B. Union Western
Large order:
HSBC bank (Company account)
AC121SA02 Shippment & Packing
AC121SA02 Transportation:
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
AC121SA02 Warranty:
We offer A 6-month warranty on all goods from us. You can return or exchange the goods within 30 days if there is any quality problem.
AC121SA02 Lead time:
We have all been well tested. All parts will be 100% tested. If the parts are not in stock, the lead time is usually 1-3 days to ship.
AC121SA02 FAQ:
Q: If I order AC121SA02 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for AC121SA02 ?
A: Of course!sample order is welcome !
Q: What happen if the AC121SA02 I receive can't work ?
A: The Mitsubishi AC121SA02 will be tested strictly before shipping.If happen that ,pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can You declare my order of Mitsubishi AC121SA02 at a very low value ?
A: Yes , we can . pls inform us before shipping .
