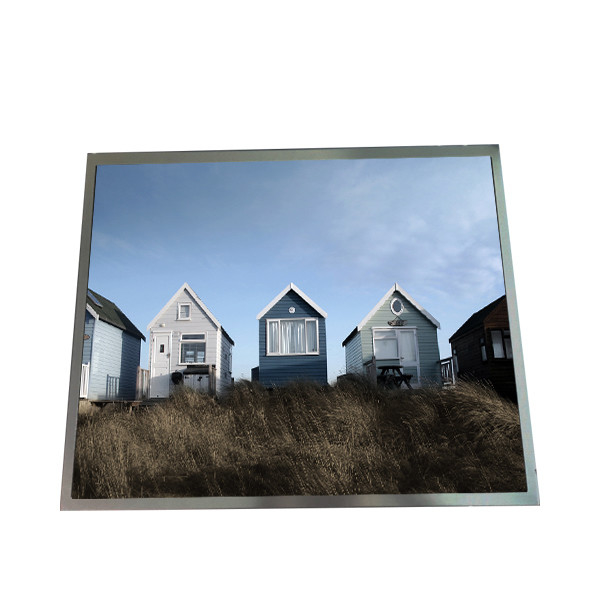

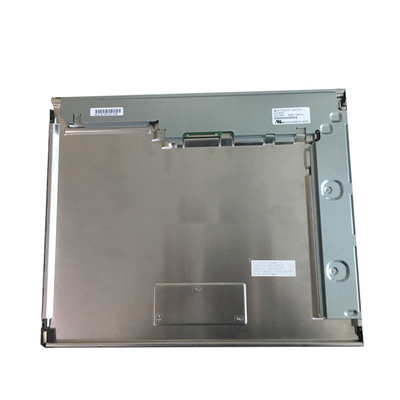

AA170EC01 17.0 inch 1280×1024 touch screen LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA170EC01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AA170EC01 | Diagonal Size: | 17.0 Inch |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×1024 [SXGA] 96PPI | Active Area: | 337.92(H)×270.336(V) Mm |
| Outline Dim.: | 358.5(H)×296.5(V)×17.4(D) Mm | Bezel Area: | 341.6(H)×274.0(V) Mm |
| Weight: | 1.36Kgs (Typ.) | Designed For: | Industrial |
Product Description
AA170EC01 17.0 inch 1280×1024 touch screen LCD display TFT Module
AA170EC01 Product details :
| Mitsubishi LCD SCREEN AA170EC01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA170EC01 |
| Screen Size | 17.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×1024 (SXGA) 96PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 337.92 × 270.336 (H×V) |
| Outline(mm) | 358 × 296.5 × 17.4 (H×V×D) |
| Bezel Area(mm) | 341.6 × 274.0 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Response | 6/19 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Backlight | 4 strings WLED , 100K hours , No Driver |
| Mass | 1.36Kgs (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3/5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AA170EC01 17.0 inch 1280×1024 touch screen LCD display TFT Module | |
Thank you for choosing us. We will do our best to support you.
100% Tested Before Shipping.
QUALITY IS 100% GURANTEED, IF YOU NEED LCDS IN BIG QTY, PLS CONTACT US FOR DISCOUNT.
Professional acknowledgement of lcd panels industry to provide customers with effective advice.
We have been in original lcd panels industry for more than 10 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
AA170EC01 Our services:
-1.For pre-sales service, we have a professional sales team and technical team, willing to answer your questions within 24 hours.
-2.For after-sales service, we will show you how to install, use, and replace damaged modules, and we can also send the technology to your country/region.
-3.Generally speaking, our LCD display will not have any serious problem, you can rest assured to buy it.
AA170EC01 Shippment & Packing
Payment: TT,Western Union or Paypal.
Ship pment:DHL;Fedex Express;DHL;TNT;UPS ect .
Delivery time : 3 working days upon payment.
AA170EC01 Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
AA170EC01 FAQ:
Q: Can You declare my order of AA170EC01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of AA170EC01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of AA170EC01 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
