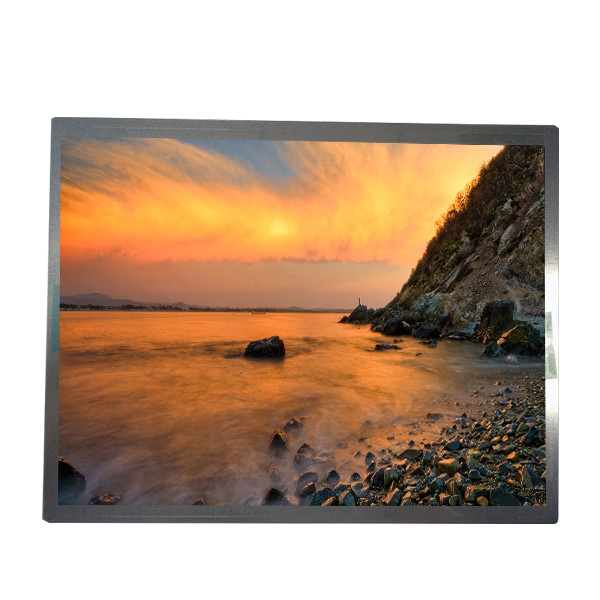

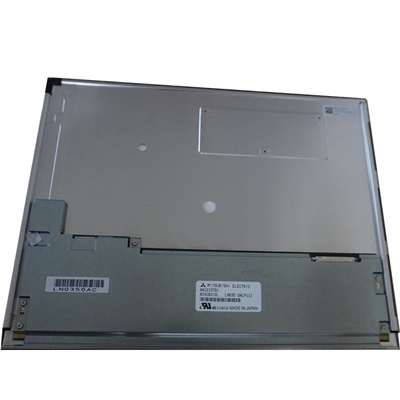

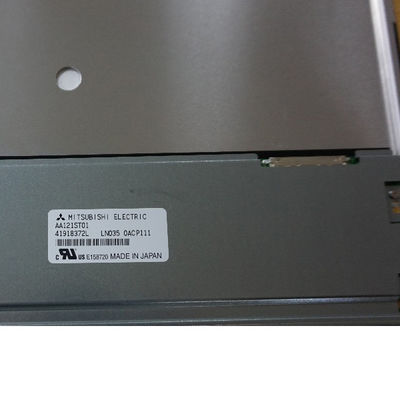

12.1 inch lcd display panel 800(RGB)×600 lcd screen AA121ST01
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA121ST01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA121ST01 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600 (SVGA) 82PPI | Active Area(mm): | 246 × 184.5 (H×V) |
| Outline(mm): | 260.5 × 203 × 10 (H×V×D) | Bezel Area(mm): | 249.0 × 187.5 (H×V) |
| Mass: | 600g (Typ.) | Used For: | Industrial |
Product Description
12.1 inch lcd display panel 800(RGB)×600 lcd screen AA121ST01
AA121ST01 Product details :
| Mitsubishi LCD SCREEN AA121ST01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA121ST01 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×600, SVGA, 82PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 246 × 184.5 (H×V) |
| Outline(mm) | 260.5 × 203 × 10 (H×V×D) |
| Bezel Area(mm) | 249.0 × 187.5 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 600g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 12.1 inch lcd display panel 800(RGB)×600 lcd screen AA121ST01 | |
AA121ST01 Our Services & Strength:
Factory Direct Supplied, Rich experience sourcing Advantage.
Engineer have More than 10 years experience in Panel Filed Support Customer Professional Technology Service.
Competitive Price and Short Lead-time
Small MOQ Support & Fast Reply
AA121ST01 Payment And delivery time:
- We usually accept T/T or L/C.This is negotiable.The delivery time usually depends on the order quantity, small quantities can be delivered in 7~15 days, large quantities can be delivered in 30 days.
AA121ST01 Shippment & Packing
AA121ST01 Shipment:
1, Pls make sure the model you need is the exact model you ordered. We shipping according tothe ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need toship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will testeach panel strictly before shipping and make very good package of it.
5,LCD will be sent by EMS/DHLUPS/ according to the place or customer choice.
EMS:15-30 business days
DHLUPS 7-15 business days
AlR MAILS LIKE HK POST, CHINA POST, SWEDEN POST 30-45 business days
AA121ST01 Guarantee:
All lcd panel enjoyed 60 days warranty. If you find the Icd is non-workable once you received, plsinform us within 7 days. We reserve the right refusing any requirement that informs the sellerlonger than 7 days. We will assist you the solve the problem and RMA is acceptable if problemstill unsolved after communication.
RMA not acceptable due to ordering the wrong model.
AA121ST01 FAQ:
Q: When will my order 12.1 inch lcd panel AA121ST01 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 12.1 inch lcd panel AA121ST01 before shipping?
A: Don't Worry , The AA121ST01 was tested ok before shipping
Q: What happen if AA121ST01 I received can't work ?
A: The AA121ST01 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
