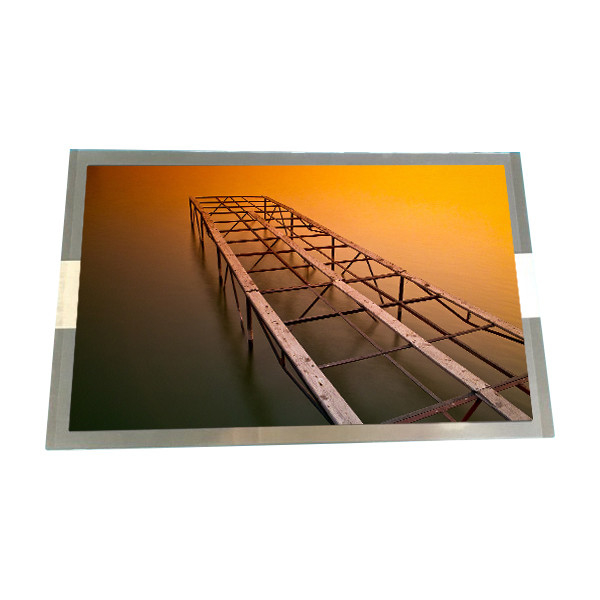

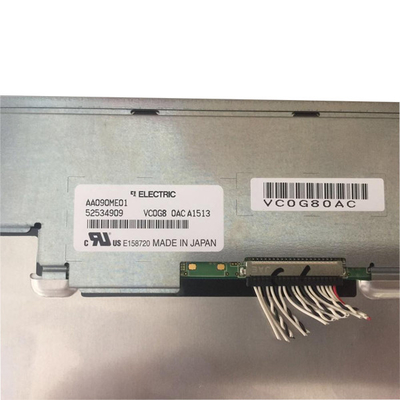

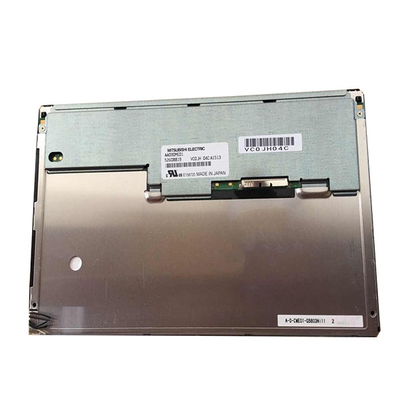

AA090ME01 IPS 20 pins LVDS 800(RGB)×480 WVGA TFT 9.0 inch LCD Panel Display AA090ME01
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA090ME01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA090ME01 | Screen Size: | 9.0 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480 (WVGA) 103PPI | Active Area(mm): | 196.8 × 118.08 (H×V) |
| Outline(mm): | 219 × 136.2 × 10 (H×V×D) | Bezel Area(mm): | 199.4 × 120.7 (H×V) |
| Mass: | 320g (Typ.) | Used For: | Industrial / Outdoor High Brightness |
Product Description
AA090ME01 IPS 20 pins LVDS 800(RGB)×480 WVGA TFT 9.0 inch LCD Panel Display AA090ME01
AA090ME01 Product details :
| Mitsubishi LCD SCREEN AA090ME01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA090ME01 |
| Screen Size | 9.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 103PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 196.8 × 118.08 (H×V) |
| Outline(mm) | 219 × 136.2 × 10 (H×V×D) |
| Bezel Area(mm) | 199.4 × 120.7 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Backlight | 7S2P WLED , 100K hours , No Driver |
| Mass | 320g (Typ.) |
| Used for | Industrial Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| AA090ME01 IPS 20 pins LVDS 800(RGB)×480 WVGA TFT 9.0 inch LCD Panel Display AA090ME01 | |
AA090ME01 Useful messages:
Grade: A
Original quality
Warranty: 3 months
Large quantity in stock
Test one by one before shipping
Factory direct price and high quality, best service
Packaging: bubber bag,anti static bag,foam box,carton box
Payment Terms: TT,Western Union,MoneyGram
AA090ME01 Shippment & Packing
AA090ME01 Delivery time:
Delivery the goods Within 3-7days after payment
AA090ME01 Shipping:
DHL,UPS,EMS,FEDEX and TNTservice and fast(2-4days).
Tracking number will be provide for checking the shipping details
AA090ME01 Warranty&after sale service:
1.Guarantee 3 Months.
2. Replece new and good if you got the fake products. But make sure that is not used and not man-made damaged.
3.ship back to us with good package , avoid damaged on the way returned.
AA090ME01 Service Time:
All questions response in 24 hours,if you have any questions about the products,please feel free to contact us
AA090ME01 FAQ:
Q: Do you accept the sample order of AA090ME01 ?
A: 90 days.
Q: What happen if Mitsubishi AA090ME01 I received can't work ?
A: lcd screen AA090ME01 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to order 9.0 inch Mitsubishi AA090ME01 ?
A: We accept the T/T , Western union , paypal .
Q: can you declared low price of my order TFT-LCD AA090ME01 when shipping?
A: Yes , please inform us the value you want .
