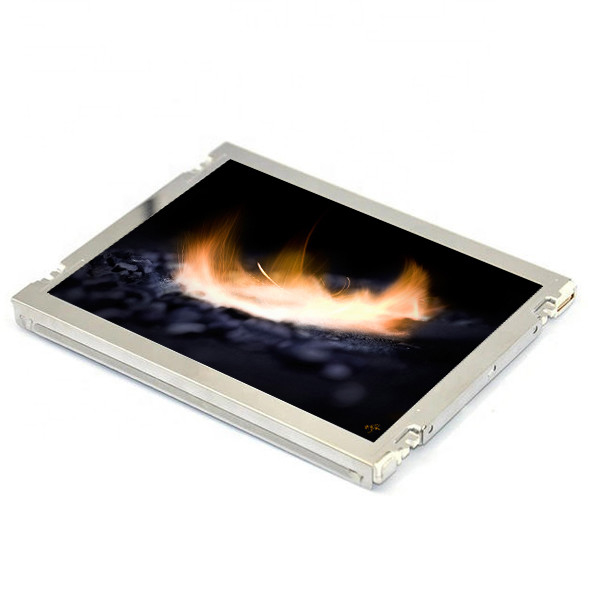

Mitsubshi 6.5 inch AA065VD11 LCD panels LCD monitor VGA With wide viewing angle LCD displays
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA065VD11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA065VD11 | Screen Size: | 6.5 Inch |
|---|---|---|---|
| Pixel Number: | 640(RGB)×480 (VGA) 122PPI | Active Area(mm): | 132.48 × 99.36 (H×V) |
| Outline(mm): | 154 × 121 × 11.5 (H×V×D) | Bezel Area(mm): | 135.5 × 102.4 (H×V) |
| Mass: | 185g (Typ.) | Used For: | Industrial / Outdoor High Brightness |
Product Description
Mitsubshi 6.5 inch AA065VD11 LCD panels LCD monitor VGA With wide viewing angle LCD displays
AA065VD11 Product details :
| Mitsubishi LCD SCREEN AA065VD11 | |
| Manufacturer | Mitsubishi |
| Model Name | AA065VD11 |
| Screen Size | 6.5 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 122PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 132.48 × 99.36 (H×V) |
| Outline(mm) | 154 × 121 (H×V×D) |
| Bezel Area(mm) | 135.5 × 102.4 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1300 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 6/19 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 40% NTSC |
| Backlight | 2 strings WLED , 100K hours , No Driver |
| Mass | 185g (Typ.) |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 31 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Mitsubshi 6.5 inch AA065VD11 LCD panels LCD monitor VGA With wide viewing angle LCD displays | |
AA065VD11 Why Choose Us:
The world's most reliable and professional LCD monitor supplier, with the lowest price, best quality and fastest delivery, saving you time and cost.
High-quality liquid crystal displays can be used in industrial, medical, computer display, digital signage and other fields.
Provide customized touch screen service, you can choose resistive touch screen and capacitive screen of different sizes
AA065VD11 Shippment & Packing
AA065VD11 Packing Details for volume production order:
(1) Packed the Monitor into air bubble bag/film
(2)Put the above together into box
(3) Packed the box into a carton box to protect the LCD during transportation.
(4) Seal the carton by tape
AA065VD11 Shipping:
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account
AA065VD11 FAQ:
Q: Do you accept the sample order of AA065VD11 ?
A: 90 days.
Q: What happen if Mitsubishi lcd screen AA065VD11 received can't work ?
A: lcd panel AA065VD11 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: What shipping methods you have for my order AA065VD11 ?
A: DHL , FEDEX, EMS ...
Q: can you declared low price of my order TFT-LCD AA065VD11 when shipping?
A: Yes , please inform us the value you want .
