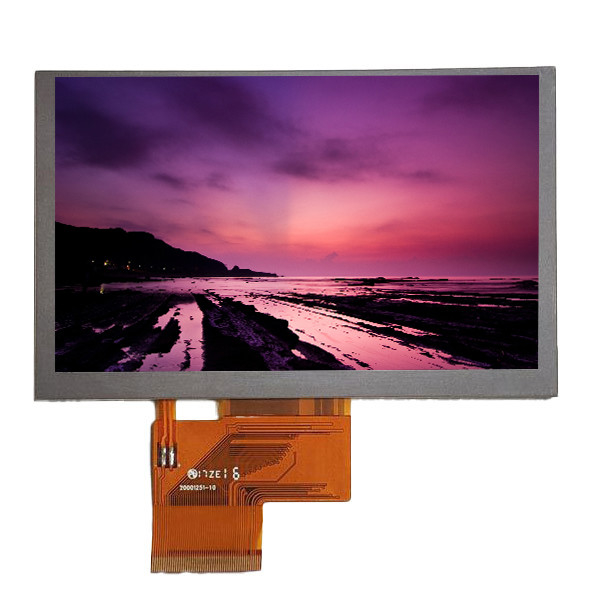

EJ050NA-01G Original new 5.0 inch LCD modules 800x480 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | EJ050NA-01G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | EJ050NA-01G | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA, 188PPI | Display Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.6(W)×67.6(H) Mm | Outline Size: | 120.7(W)×76.3(H)×3.3(D) Mm |
| Weight: | 58.5g (Typ.) | Application: | Portable Navigation / VOIP Phone / MID UMPC / MP3 PMP |
Product Description

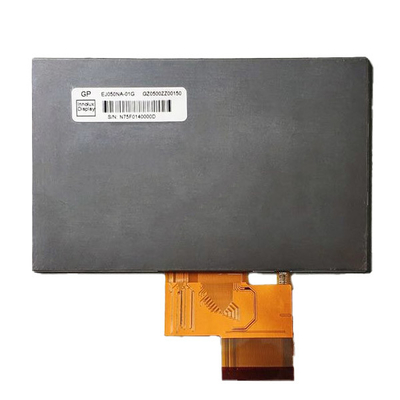

EJ050NA-01G Original new 5.0 inch LCD modules 800x480 LCD Display
EJ050NA-01G Product details :

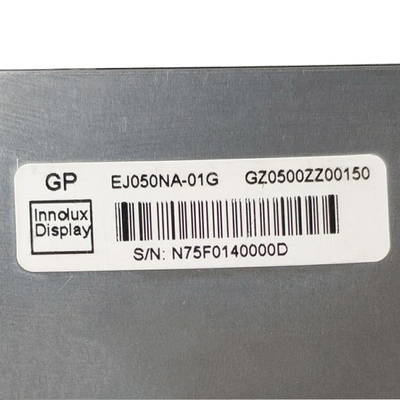

| Chimei Innolux LCD SCREEN EJ050NA-01G | |
| Manufacturer | Chimei Innolux |
| Model Name | EJ050NA-01G |
| Screen Size | 5.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 188PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 108 × 64.8 (H×V) |
| Outline(mm) | 120.7 × 76.3 × 3.3 (H×V×D) |
| Bezel Area(mm) | 110.6 × 67.6 (H×V) |
| Treatment | Clear |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 7S2P WLED , 15K hours , No Driver |
| Mass | 58.5g (Typ.) |
| Used for | Portable Navigation / VOIP Phone / MID UMPC / MP3 PMP |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Voltage Supply | 3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| EJ050NA-01G Original new 5.0 inch LCD modules 800x480 LCD Display | |
EJ050NA-01G Payment Information:
We accept T/T & Western Union & PayPal & Escrow service.
EJ050NA-01G Shippment & Packing
EJ050NA-01G Shipping:
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account
EJ050NA-01G Product packaging:
Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
EJ050NA-01G Guarantee:
1. All LCD panels will be tested good before shipping.
2. Warranty period: 3 months
EJ050NA-01G Return & Replace:
1. If the products you received are Non-artificial damaged, please notify us in 3 days.
2. Products should be returned with original package and be in good condition if possible.
3. Customers need to bear the freight of returned product.
EJ050NA-01G FAQ:
Q: Can you give me a discount if I need a large quantity of Chimei Innolux EJ050NA-01G ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How can I trace my order of EJ050NA-01G ?
A: we will give you tracking number then you can trace your order form website.
Q: Can I pay my goods EJ050NA-01G by credit card ?
A: Yes!you can use your credit card through your Paypal account.
