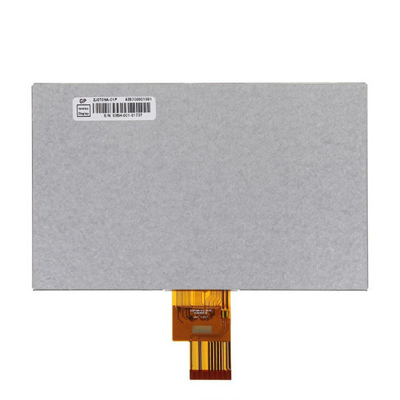

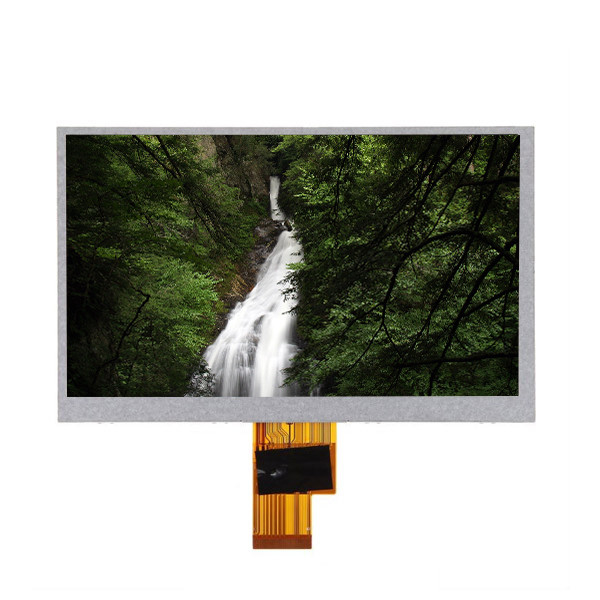

7.0 inch ZJ070NA-01P 1024×600 WLED lcd screen TTL LVDS monitor lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | ZJ070NA-01P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | ZJ070NA-01P | Diagonal Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600 [WSVGA] 169PPI | Active Area: | 153.6(H)×90(V) Mm |
| Outline Dim.: | 165.75(H)×105.39(V)×5.1(D) Mm | Bezel Area: | 156.4(H)×92.8(V) Mm |
| Weight: | 156g | Designed For: | Automotive Display |
Product Description
7.0 inch ZJ070NA-01P 1024×600 WLED lcd screen TTL LVDS monitor lcd display
ZJ070NA-01P Product details :
| Innolux LCD SCREEN ZJ070NA-01P | |
| Manufacturer | Innolux |
| Model Name | ZJ070NA-01P |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 169PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 153.6 × 90 (H×V) |
| Outline(mm) | 165.75 × 105.39 × 5.1 (H×V×D) |
| Bezel Area(mm) | 156.4 × 92.8 (H×V) |
| Treatment | Glare (Haze 0%) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 70% NTSC |
| Backlight | WLED , 15K hours , No Driver |
| Mass | 156g |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Voltage Supply | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 7.0 inch ZJ070NA-01P 1024×600 WLED lcd screen TTL LVDS monitor lcd display | |
ZJ070NA-01P Payment Information:
T/T (Wire Transfer) / PayPal / western Union / MoneyGram
ZJ070NA-01P Shippment & Packing
ZJ070NA-01P Shipping:
1.DHL/UPS/Fedex Express usually takes about 3-5 working days to the destination. And it’s about 5-8 working days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel take 7 to 30 days to ship to the worldwide.
2.We will send the goods within 3 business days after the full payment has been confirmed. If the payment is not available, your order will be closed automatically.
ZJ070NA-01P Top Quality:
All screens are New&Original with original factory sealed package
Fully Testing make sure every screen you got is work perfec
ZJ070NA-01P Fast Delivery & Safe Package:
1-3days upon receipt of your payment
Original factory package & YONGS customized safe package -- “0” damage rate for last 7 years.
ZJ070NA-01P FAQ:
Q: If I order ZJ070NA-01P now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for Innolux ZJ070NA-01P ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of ZJ070NA-01P ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for ZJ070NA-01P ?
A: We accept T/T , Paypal , western union .
