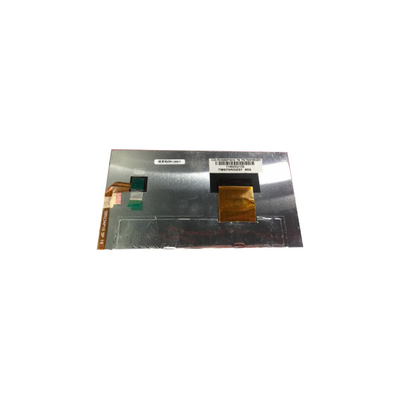

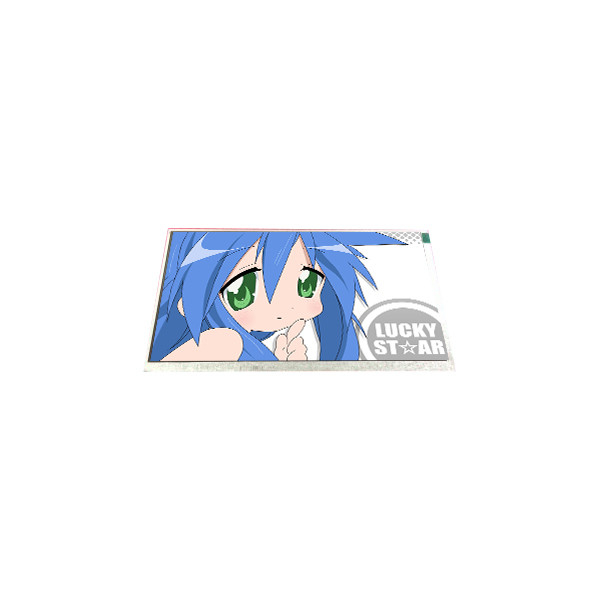

TIANMA TM070RDZ07 Lcd Monitors Screen Display 7.0 Inch 1366x768 800*480 Lcd Module
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070RDZ07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TM070RDZ07 | Panel Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 157.2(W)×82.32(H) Mm |
| Bezel Opening: | 160.2(W)×85.32(H) Mm | Outline Size: | 167(W)×93(H)×6(D) Mm |
| Best View On: | 12 O'clock | Application: | Automotive Display |
| Signal Interface: | Parallel RGB (1 Ch, 6-bit), 60 PinsFPC | Input Voltage: | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
Product Description
TIANMA TM070RDZ07 Lcd Monitors Screen Display 7.0 Inch 1366x768 800*480 Lcd Module
TM070RDZ07 Product details :
| Brand | TIANMA |
| Model P/N | TM070RDZ07 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 157.2(W)×82.32(H) mm |
| Bezel Opening | 160.2(W)×85.32(H) mm |
| Outline Size | 167(W)×93(H)×6(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 660 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | 262K 70%NTSC |
| Lamp Type | 5S3PWLED, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 117g |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 60 pinsFPC |
| Input Voltage | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C |
TM070RDZ07 Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
TM070RDZ07 Shippment & Packing
TM070RDZ07 Shipping:
We always ship in 1-3 business day. Tracking number will be provided for all package. The tracking number will be sent to you once your order has been shipped. Any problem, pls feel free to contact us. Pls contact us before leaving any bad reviews. We will try best to make you 100% satisfied. Thanks!
If you are urgently need your item, please choose DHL, FedEx or EMS etc Express shipping, it will save much time on delivery, and you will receive your package in a short time, please note. Thanks!
TM070RDZ07 Warranty Terms:
1. Satisfaction is guaranteed. If you are not completely satisfied with your purchase, you may return it for a refund or exchange it for a replacement. We only require that you contact us within 14 days of receiving your item and return it in the same condition it was received.
2. Returns will not be accepted if you happen to purchase the wrong item by mistake. So, please pay close attention to our picture and if possible compare it with your original part before purchasing.
3. For all returns, the buyer is responsible for paying the cost of the item’s return shipping.
TM070RDZ07 FAQ:
Q: How can I trace my order of TM070RDZ07 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of TM070RDZ07 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of TM070RDZ07 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of TM070RDZ07 ?
A: Of course!If you make a large order, we will give you a discount.
