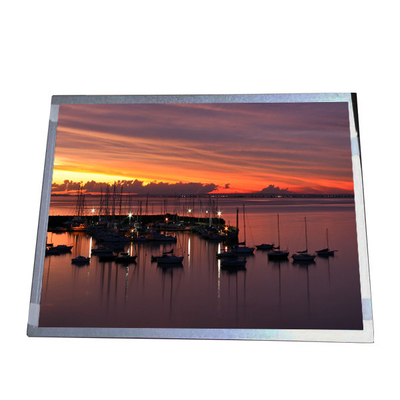

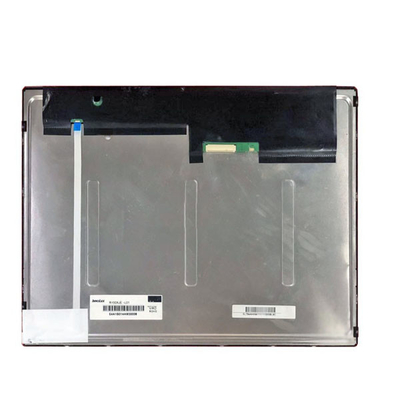

R150XJE-L01 15 inch LCD panel support 1024*768 350 cd/m lvds input 60HZ 15 INCH LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R150XJE-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | R150XJE-L01 | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 (XGA) 85PPI | Active Area(mm): | 304.128 × 228.096 (H×V) |
| Outline(mm): | 326.5 × 253.5 × 9.6 (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Color Depth: | 262K/16.2M 72% NTSC | Application: | Medical Imaging |
Product Description
R150XJE-L01 15 inch support 1024*768 350 cd/m lvds input 60HZ 15 INCH LCD screen
R150XJE-L01 Product details :
| Innolux LCD SCREEN R150XJE-L01 | |
| Manufacturer | Innolux |
| Model Name | R150XJE-L01 |
| Screen Size | 15.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 85PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 304.128 × 228.096 (H×V) |
| Outline(mm) | 326.5 × 253.5 × 9.6 (H×V×D) |
| Bezel Area(mm) | 307.4 × 231.3 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 2500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 15/10 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 262K/16.2M 72% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 700±50g |
| Used for | Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 65 °C Operating Temp.: -10 ~ 65 °C |
| R150XJE-L01 15 inch LCD panel support 1024*768 350 cd/m lvds input 60HZ 15 INCH LCD screen | |
R150XJE-L01 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
R150XJE-L01 Return and feedback
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
R150XJE-L01 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
R150XJE-L01 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
R150XJE-L01 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
R150XJE-L01 FAQ:
Q: How to make payment of R150XJE-L01 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of R150XJE-L01 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of via credit card ?
A: Yes!you can use your credit card through your Paypal account.
R150XJE-L01 Shippment & Packing
