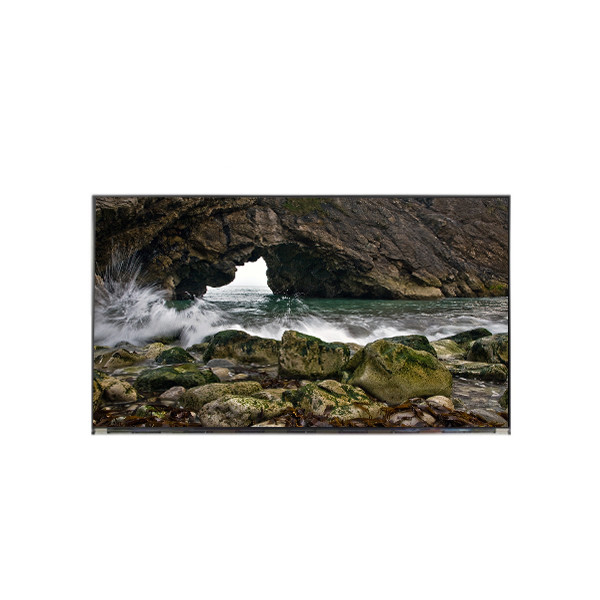

M238HCA-L5Z 1920×1080 23.8 inch LCD display screen for all-in-one PC
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |

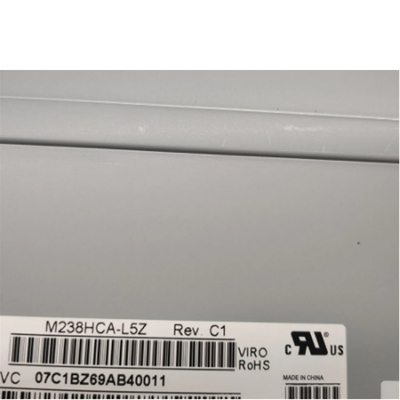

| Model Number: | M238HCA-L5Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | M238HCA-L5Z | Diagonal Size: | 23.8 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 92PPI | Active Area: | 527.04(H)×296.46(V) Mm |
| Outline Dim.: | 535(H)×313(V)×13(D) Mm | Support Color: | 16.7M 72% NTSC |
| Weight: | 2.27Kgs (Typ.) | Designed For: | Desktop Monitor |
Product Description
M238HCA-L5Z 1920×1080 23.8 inch LCD display screen for all-in-one PC
M238HCA-L5Z Product details :
| Innolux LCD SCREEN M238HCA-L5Z | |
| Manufacturer | Innolux |
| Model Name | M238HCA-L5Z |
| Screen Size | 23.8 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 92PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 527.04 × 296.46 (H×V) |
| Outline(mm) | 535 × 313 × 13 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Min.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8/7 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 40K hours , No Driver |
| Mass | 2.27Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

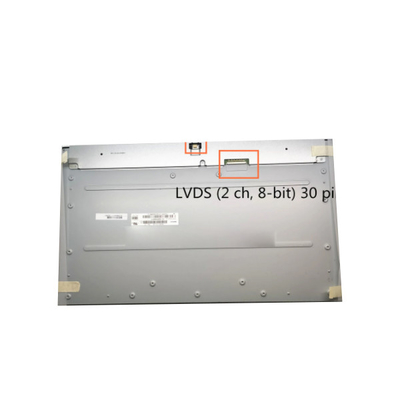

| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M238HCA-L5Z 1920×1080 23.8 inch LCD display screen for all-in-one PC | |
M238HCA-L5Z Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,
please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
M238HCA-L5Z Shippment & Packing
M238HCA-L5Z Packaging & Shipping:
1. WORLDWIDE SHIPPING including DHL, FedEx, UPS, TNT and EMS (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
5. If you have not received your shipment within delivery time we provided , please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
M238HCA-L5Z Import Taxes or Duties:
1.- Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are
afforded by buyer.
2.- Please check with you country’s Customs office to determine what these additional costs will be before purchase.
3.- Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill invoice, or how to describe the item, etc..
M238HCA-L5Z FAQ:
Q: If I order M238HCA-L5Z now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for M238HCA-L5Z ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of M238HCA-L5Z ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How can I trace my order of M238HCA-L5Z ?
A: we will give you tracking number then you can trace your order from website.
