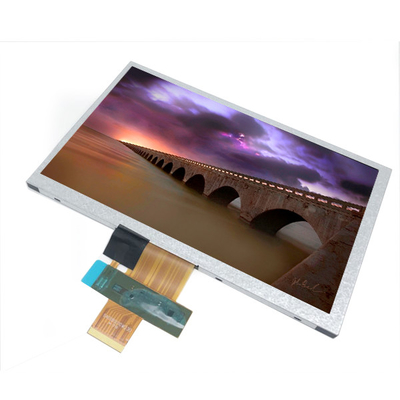

NJ080IA-10D 8inch lcd display panel 1024*600 high resolution 40 pins LVDS controller board
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | NJ080IA-10D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NJ080IA-10D | Panel Size: | 8.0 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 (WSVGA) 148PPI | Active Area(mm): | 176.64 × 99.36 (H×V) |
| Outline(mm): | 192.8 × 116.9 × 6.7 (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Color Depth: | 16.7M 70% NTSC | Application: | Automotive Display |
Product Description
NJ080IA-10D 8inch lcd display panel 1024*600 high resolution 40 pins LVDS controller board
NJ080IA-10D Product details :
| Innolux LCD SCREEN NJ080IA-10D | |
| Manufacturer | Innolux |
| Model Name | NJ080IA-10D |
| Screen Size | 8.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 148PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 176.64 × 99.36 (H×V) |
| Outline(mm) | 192.8 × 116.9 × 6.7 (H×V×D) |
| Bezel Area(mm) | 180.44 × 103.16 (H×V) |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Backlight | 3S9P WLED , 20K hours , No Driver |
| Mass | 184g (Typ.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Voltage Supply | 3.3/13/24/-5.6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| NJ080IA-10D 8inch lcd display panel 1024*600 high resolution 40 pins LVDS controller board | |
NJ080IA-10D Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NJ080IA-10D Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NJ080IA-10D Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NJ080IA-10D About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NJ080IA-10D Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
NJ080IA-10D FAQ:
Q: What happen if the lcd panel NJ080IA-10D I received can't work ?
A: our lcd panel NJ080IA-10D was tested ok before shipping .
Q: How to order lcd panel NJ080IA-10D ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: Can you declared low value for my order lcd screen NJ080IA-10D when shipping?
A: Yes, We can do it for you if you need.
Q: How long is the warranty of 8.0 inch NJ080IA-10D ?
A: 90 days .
NJ080IA-10D Shippment & Packing
