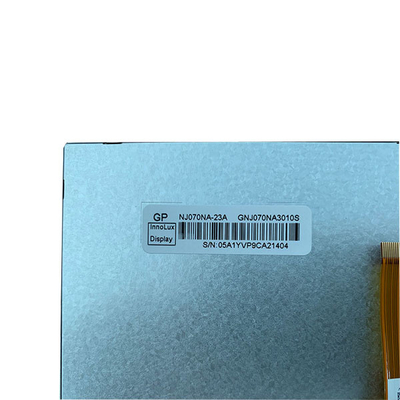

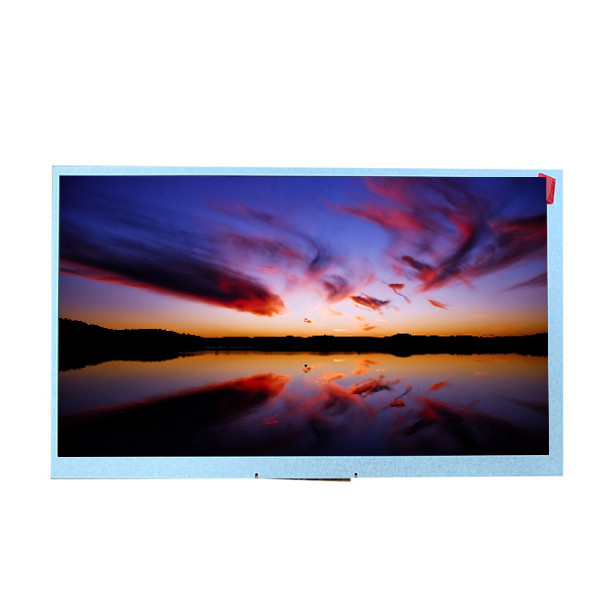

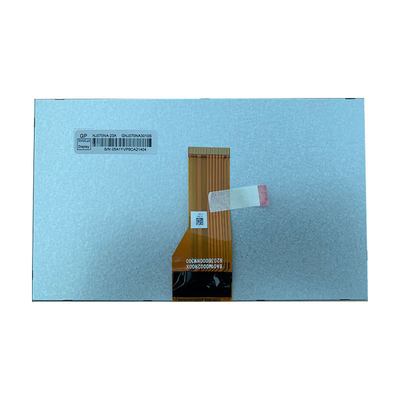

NJ070NA-23A Innolux 7 inch TFT LCD screen with 1024*600 LVDS cable and controller board for lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | NJ070NA-23A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NJ070NA-23A | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 (WSVGA) 170PPI | Active Area(mm): | 154.214 × 85.92 (H×V) |
| Outline(mm): | 164.9 × 100 × 5.1 (H×V×D) | Viewing Angle: | 75/75/70/75 (Typ.)(CR≥10) |
| Color Depth: | 262K/16.7M | Application: | Automotive Display |
Product Description
NJ070NA-23A Innolux 7 inch TFT LCD screen with 1024*600 LVDS cable and controller board for lcd panel
NJ070NA-23A Product details :
| Innolux LCD SCREEN NJ070NA-23A | |
| Manufacturer | Innolux |
| Model Name | NJ070NA-23A |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 170PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 154.214 × 85.92 (H×V) |
| Outline(mm) | 164.9 × 100 × 5.1 (H×V×D) |
| Bezel Area(mm) | 157.21 × 89.49 (H×V) |
| Treatment | Hard coating |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M |
| Backlight | WLED , 20K hours , No Driver |
| Mass | 140g (Typ.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Voltage Supply | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| NJ070NA-23A Innolux 7 inch TFT LCD screen with 1024*600 LVDS cable and controller board for lcd panel | |
NJ070NA-23A Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NJ070NA-23A Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NJ070NA-23A Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NJ070NA-23A About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NJ070NA-23A Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NJ070NA-23A FAQ:
Q: How to make payment of NJ070NA-23A ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of NJ070NA-23A ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NJ070NA-23A ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of NJ070NA-23A ?
A: Of course!sample order is welcome !
