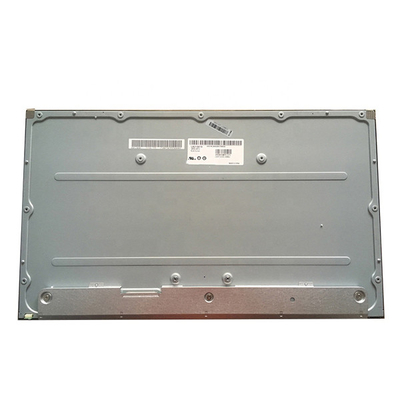

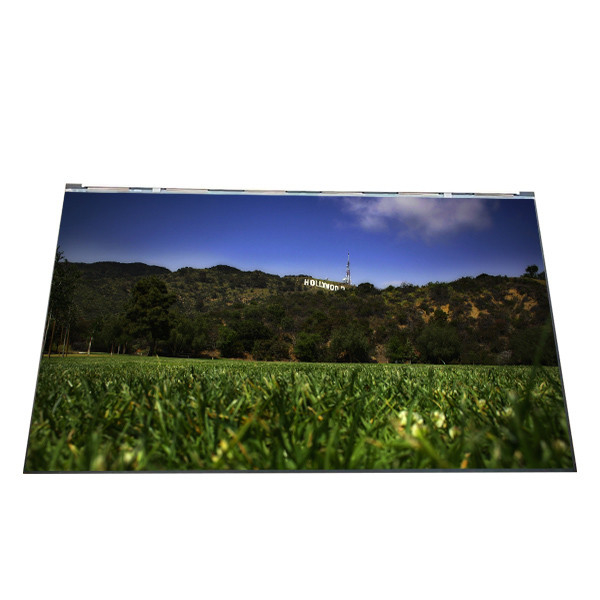

M215HCA-L5Z 21.5 inch LCD Panel 1920×1080 3-side Borderless display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M215HCA-L5Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M215HCA-L5Z | Screen Size: | 21.5 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 102PPI | Active Area(mm): | 476.064 × 267.786 (H×V) |
| Outline(mm): | 484.464 × 284.486 × 13.4 (H×V×D) | Luminance: | 250 Cd/m² (Typ.) |
| Mass: | 1.82±0.18Kgs | Used For: | Desktop Monitor |
Product Description
M215HCA-L5Z 21.5 inch LCD Panel 1920×1080 3-side Borderless display
M215HCA-L5Z Product details :
| Innolux LCD SCREEN M215HCA-L5Z | |
| Manufacturer | Innolux |
| Model Name | M215HCA-L5Z |
| Screen Size | 21.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 102PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 476.064 × 267.786 (H×V) |
| Outline(mm) | 484.5 × 284.4 × 13.4 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8/7 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 4 strings WLED , 30K hours , No Driver |
| Mass | 1.82±0.18Kgs |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M215HCA-L5Z 21.5 inch LCD Panel 1920×1080 3-side Borderless display | |
M215HCA-L5Z Products and services:
&Our company mainly sales of LCD panel and touch screen,
& We have thousands of models and products.So we are able to meet consumer demand.
& we offer high quality, fast delivery, competitive price for our customers
& Please send your RFQ(request for quoting) to get latest price.
& Warranty of each part.
& Terms of Payment:Paypal,TT,Escrow,Western Union
M215HCA-L5Z Shippment & Packing
M215HCA-L5Z Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
M215HCA-L5Z Warranty:
1.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).
2.- We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.- One we get the returned items, we will send the replaced ones back as soon as possible.
5.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts
M215HCA-L5Z FAQ:
Q: If I order M215HCA-L5Z now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for M215HCA-L5Z ?
A: Of course!sample order is welcome !
Q: Can You declare my order of M215HCA-L5Z at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of M215HCA-L5Z ?
A: 90days warranty .
