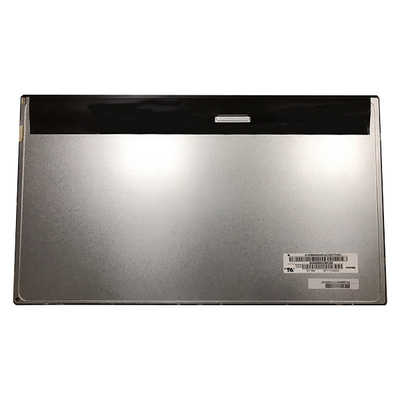

Innolux M200HJJ-L20 Rev.C4 19.5 Inch 1920*1080 Ips Tft Lcd Display Screen Panel Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M200HJJ-L20 Rev.C4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | M200HJJ-L20 Rev.C4 | Panel Size: | 19.5 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 112PPI | Display Area: | 434.88(W)×238.68(H) Mm |
| Bezel Opening: | 438.18(W)×241.98(H) Mm | Outline Size: | 459.8(W)×263(H)×11.82(D) Mm |
| Weight: | 1.47±0.08Kgs | Application: | Desktop Monitor / Industrial |
Product Description
Innolux M200HJJ-L20 Rev.C4 19.5 Inch 1920*1080 Ips Tft Lcd Display Screen Panel Module
M200HJJ-L20 Rev.C4 Product details :
| Innolux LCD SCREEN M200HJJ-L20 Rev.C4 | |
| manufacturer | Innolux |
| Model Name | M200HJJ-L20 Rev.C4 |
| screen size | 19.5 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 (FHD) 112PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 434.88 × 238.68 (H×V) |
| physical dimension | 459.8 × 263 × 11.82 (H×V×D) |
| Visual size | 438.18 × 241.98 (H×V) |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 3000 : 1 (Typ.) (TM) |
| Best angle | Symmetry |
| Optical mode | MVA, Normally Black, Transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Responding time | 15/5 (Typ.)(Tr/Td) ms |
| Number of color | 16.7M 72% NTSC |
| Backlight type | 4 strings WLED , 30K hours , No Driver |
| Panel weight | 1.47±0.08Kgs |
| Apply to | Industrial / Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Innolux M200HJJ-L20 Rev.C4 19.5 Inch 1920*1080 Ips Tft Lcd Display Screen Panel Module | |
M200HJJ-L20 Rev.C4 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
M200HJJ-L20 Rev.C4 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
M200HJJ-L20 Rev.C4 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
M200HJJ-L20 Rev.C4 Shippment & Packing
M200HJJ-L20 Rev.C4 Best Quality Assurance:
1. We only provide theoriginal new items, 100% make sure the best quality!
2. 90-days GUARRANTEE OF QUALITY (After Our Delivery Date).
M200HJJ-L20 Rev.C4 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
M200HJJ-L20 Rev.C4 FAQ:
Q: Can you give me a discount if I need a large quantity of M200HJJ-L20 Rev.C4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: What's the different between original touch panel and compatible touch screen ?
A: Don't worry it . The compatible touch panel has the same function as original one .
Q: How long will I receive my goods of Innolux M200HJJ-L20 Rev.C4 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
