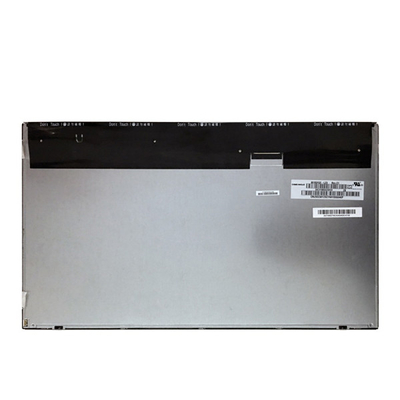

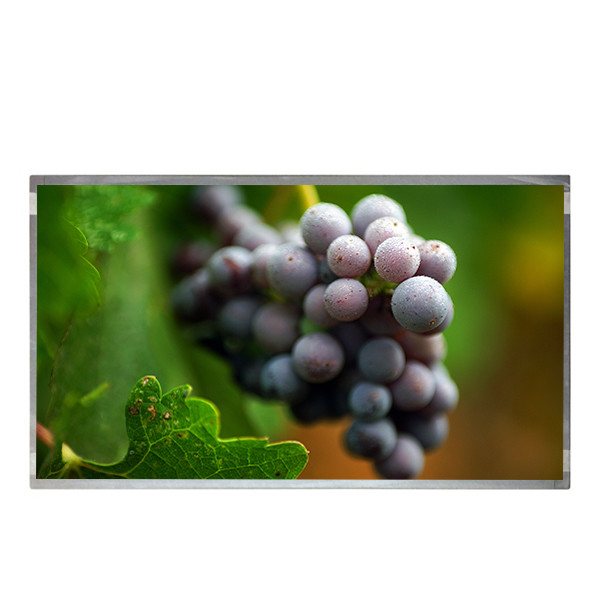

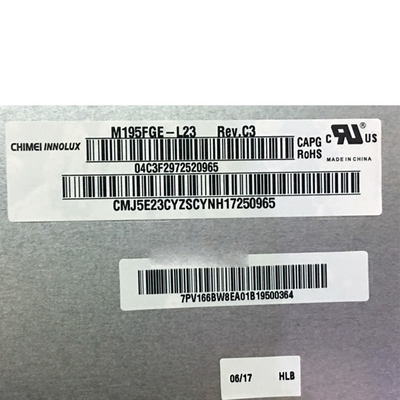

M195FGE-L23 19.0 inch lcd panel matte 1600×900 original new quality
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M195FGE-L23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | M195FGE-L23 | Diagonal Size: | 19.5 Inch |
|---|---|---|---|
| Pixel Format: | 1600(RGB)×900 [HD+] 94PPI | Active Area: | 432(H)×239.76(V) Mm |
| Outline Dim.: | 452(H)×263(V)×11(D) Mm | Bezel Area: | 435.3(H)×243.06(V) Mm |
| Weight: | 1.40/1.45Kgs (Typ./Max.) | Designed For: | Desktop Monitor |
Product Description
M195FGE-L23 19.0 inch lcd panel matte 1600×900 original new quality
M195FGE-L23 Product details :
| Innolux LCD SCREEN M195FGE-L23 | |
| Manufacturer | Innolux |
| Model Name | M195FGE-L23 |
| Screen Size | 19.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1600(RGB)×900 (HD+) 94PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 432 × 239.76 (H×V) |
| Outline(mm) | 452 × 263 × 11 (H×V×D) |
| Bezel Area(mm) | 435.3 × 243.06 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 200cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 10S4P WLED , 40K hours , No Driver |
| Mass | 1.45/1.50Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M195FGE-L23 19.0 inch lcd panel matte 1600×900 original new quality | |
