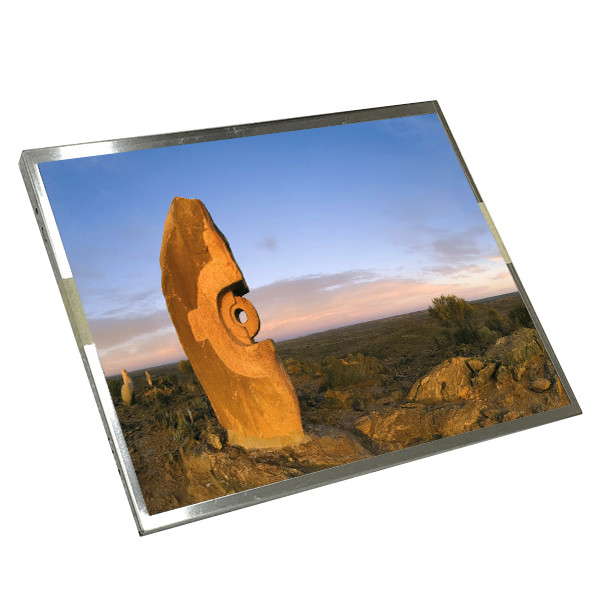

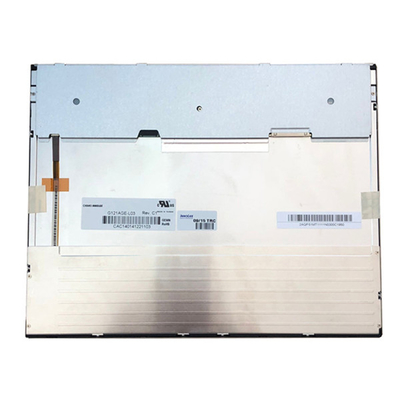

12.1 inch Original LCD module G121X1-L02 Applied to industrial products
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | G121X1-L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G121X1-L02 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 105PPI | Active Area: | 245.76(H)×184.32(V) Mm |
| Outline Dim.: | 260.5(H)×204(V)×12.7(D) Mm | Bezel Area: | 249.0(H)×187.5(V) Mm |
| Weight: | 700g (Max.) | Designed For: | Industrial / Automotive Display |
Product Description
12.1 inch Original LCD module G121X1-L02 Applied to industrial products
G121X1-L02 Product details :
| CMO LCD SCREEN G121X1-L02 | |
| Manufacturer | CMO |
| Model Name | G121X1-L02 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 105PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 245.76 × 184.32 (H×V) |
| Outline(mm) | 260.5 × 204 × 12.7 (H×V×D) |
| Bezel Area(mm) | 249.0 × 187.5 (H×V) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 500 (Typ.)(cd/m²) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 6/17 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 46% NTSC |
| Backlight | 2 pcs CCFL , 50K hours , No Driver |
| Mass | 700g (Max.) |
| Used for | Industrial / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C |
| 12.1 inch Original LCD module G121X1-L02 Applied to industrial products | |
Our company is a high-tech enterprise focusing on the research and development, production and sales of LCD screens.
1.LCD series products and other products are professionally produced and processed, and have a complete and scientific quality management system.
2.The company has more than ten years of industry experience, professional hardware research and development team, can be customized according to customer requirements, to provide customers with professional and perfect LCD products and system solutions.
3.The company mainly deals in LCD screens of first-line brands such as Innolux and BOE, providing customers with a full range of services.
4.The main specifications include a full range of LCD products from 4.3 inches to 15.6 inches, and can provide various LCD supporting machines
5.It is suitable for medical equipment, beauty equipment, automobile navigation, smart home, cashier POS machine, advertising machine, Internet teaching terminal, multimedia advertising terminal, security monitoring and other fields.
6. We attach great importance to credit, abide by contract, guarantee product quality, and win the trust of customers by the principle of multiple varieties, small profits and quick turnover.
G121X1-L02 Shippment & Packing
G121X1-L02 Packaging, transportation and delivery:
Packing details: packed with anti-static bag and foam box to ensure safe transportation
Transportation: timely delivery via UPS, EMS, DHL, TNT, FedEx or air freight
Delivery time: 7-10 days for stock products, 3-4 weeks for mass production products
Delivery details: 1 to 30 days. Shipping cost is determined by the weight and volume of the product
Sample: Our company provides samples for quality testing or other business purposes, but please pay for the samples and freight
G121X1-L02 Warranty and Refund:
1.All products will be tested strictly before shipping to make sure they are 100% working well.
2.Please also test them within 3-5 days after received.BUT DO NOT INSTALL before testing(ONLY connect LCD to mainboard for testing).If LCD damaged after lnstallation,order Non-Refundable and WARRANTY VOID.
3.we provide 6-month warranty for all our products,but the original labels marked by us must not be removed,nor any of the parts have been used or damaged deliberately.
If the goods you received is damaged,wIong or defective,please contact us first for a new replacement or refund. the returned package must be packed well. You also need to leave a message into the returned box for the order information.contact information and return reason,so that we can know where it is from
G121X1-L02 FAQ:
Q: If I order G121X1-L02 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for G121X1-L02 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of G121X1-L02 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of G121X1-L02 ?
A: 90days warranty .
