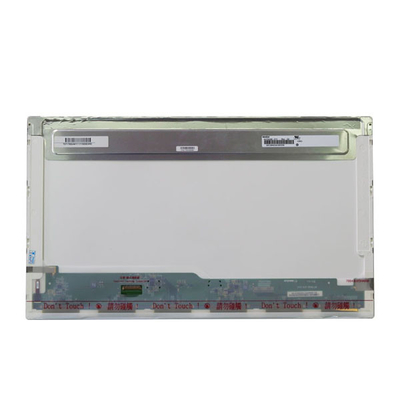

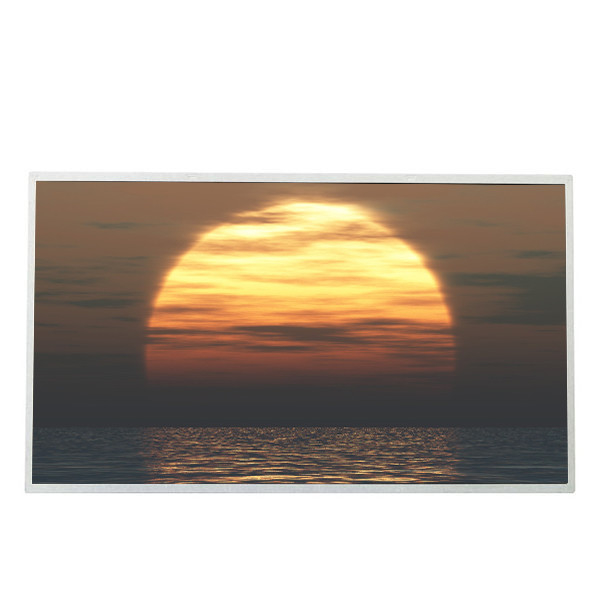

N173HGE-E11 17.3 inch LED LCD Screen Laptop Display Panel EDP 30 Pin
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N173HGE-E11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N173HGE-E11 | Diagonal Size: | 17.3 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 (FHD) 127PPI | Active Area: | 381.888 × 214.812 (H×V) |
| Outline Dim.: | 398.1 × 232.8 × 5.8 (H×V×D) | Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) |
| Color Depth: | 262K 72% NTSC | Designed For: | Laptop |
Product Description
N173HGE-E11 17.3 inch LED LCD Screen Laptop Display Panel EDP 30 Pin
N173HGE-E11 Product details :
| Innolux LCD SCREEN N173HGE-E11 | |
| Manufacturer | Innolux |
| Model Name | N173HGE-E11 |
| Screen Size | 17.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 127PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 381.888 × 214.812 (H×V) |
| Outline(mm) | 398.1 × 232.8 × 5.8 (H×V×D) |
| Bezel Area(mm) | 386.18 × 218.85 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 650 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Response | 2/6 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 72% NTSC |
| Backlight | 11S6P WLED , 15K hours , With LED Driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N173HGE-E11 17.3 inch LED LCD Screen Laptop Display Panel EDP 30 Pin 1080P FHD FOR DELL | |
N173HGE-E11 Note:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
3.The LCD model name in your hand, such as: LM140LF1L02
4.Your notebook computer name, such as: brand,specific model
5.Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
N173HGE-E11 Shipping:
After the payment is checked and received, the spot and samples will be sent out within 3 days; the delivery of small
quantities will take 2-3 weeks, and the delivery of large quantities will take 5-6 weeks. Customized products will be negotiated by both parties to confirm the delivery date.
N173HGE-E11 After-sales service:
A. The product warranty period is 90 days.
B. The goods are all inspected before delivery, and you will contact us within 24 hours after receiving the goods. If there is no human problem, we will replace it for you free of charge. After installation or man-made damages, such as breakage, scratches,etc., are not warranted.
C.The goods must be returned to us in their original condition, including the box and accessories. Please send it by EMS or your local post when returning the product. thanks!
N173HGE-E11 We Promise:
1. Your inquiry related to our products or price will be replied as soon as possible.
2. 12 months warranty and free replacement within warranty period.
3. All the products are 100% brand new with original.
4. High quality, reasonable price and on time delivery.
N173HGE-E11 FAQ:
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of N173HGE-E11 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of N173HGE-E11 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of N173HGE-E11 ?
A: Of course!If you make a large order, we will give you a discount.
N173HGE-E11 Shippment & Packing
