N173FGE-E23 EDP 30 Pin 17.3 paper thin lcd laptop led screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N173FGE-E23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N173FGE-E23 | Diagonal Size: | 17.3 Inch |
|---|---|---|---|
| Pixel Format: | 1600(RGB)×900 (HD+) 106PPI | Active Area: | 382.08 × 214.92 (H×V) |
| Outline Dim.: | 398.1 × 232.8 × 5.8 (H×V×D) | Bezel Area: | 386.88 × 218.32 (H×V) |
| Color Depth: | 262K 60% NTSC | Designed For: | Laptop |
Product Description
N173FGE-E23 EDP 30 Pin 17.3 paper thin lcd laptop led screen
N173FGE-E23 Product details :
| Innolux LCD SCREEN N173FGE-E23 | |
| Manufacturer | Innolux |
| Model Name | N173FGE-E23 |
| Screen Size | 17.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1600(RGB)×900 (HD+) 106PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 382.08 × 214.92 (H×V) |
| Outline(mm) | 398.1 × 232.8 × 5.8 (H×V×D) |
| Bezel Area(mm) | 386.88 × 218.32 (H×V) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 650 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 60% NTSC |
| Backlight | 9S5P WLED , 15K hours , With LED Driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

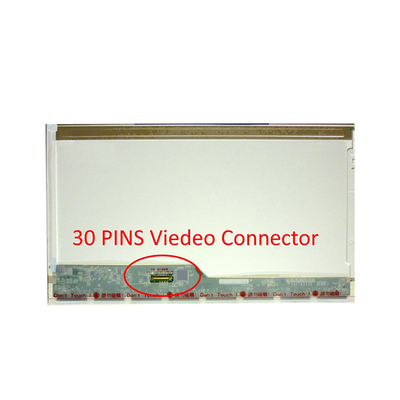

| Signal Type | eDP (1 Lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N173FGE-E23 EDP 30 Pin 17.3 paper thin lcd laptop led screen | |
N173FGE-E23 NOTE:
The list price is only an estimate. Because prices are affected by market fluctuations. Usually our price will be based on the quantity of your order. All the quotations we provide to you are only valid for 7 days, so please contact the customer to confirm the price of that day before placing the order
N173FGE-E23 Shipping:
After the payment is checked and received, the spot and samples will be sent out within 3 days; the delivery of small
quantities will take 2-3 weeks, and the delivery of large quantities will take 5-6 weeks. Customized products will be negotiated by both parties to confirm the delivery date.
N173FGE-E23 After-sales service:
A. The product warranty period is 90 days.
B. The goods are all inspected before delivery, and you will contact us within 24 hours after receiving the goods. If there is no human problem, we will replace it for you free of charge. After installation or man-made damages, such as breakage, scratches,etc., are not warranted.
C.The goods must be returned to us in their original condition, including the box and accessories. Please send it by EMS or your local post when returning the product. thanks!
N173FGE-E23 We Promise:
1. Your inquiry related to our products or price will be replied as soon as possible.
2. 12 months warranty and free replacement within warranty period.
3. All the products are 100% brand new with original.
4. High quality, reasonable price and on time delivery.
N173FGE-E23 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: How to order N173FGE-E23 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: What happen if lcd screen N173FGE-E23 I received can't work ?
A: Our item N173FGE-E23 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How long the warranty of TFT-LCD N173FGE-E23 ?
A: 90 DAYS.
N173FGE-E23 Shippment & Packing
