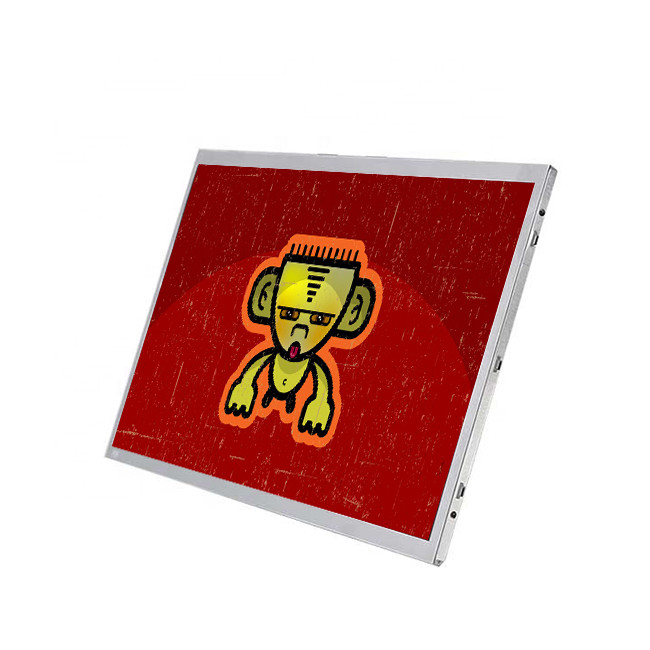

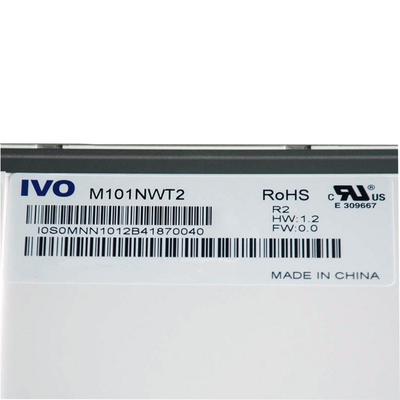

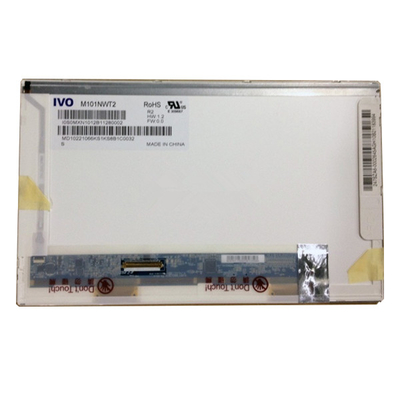

Brand New Original M101NWT2 R2 1024x600 LCD screen Display panel In Stock
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M101NWT2 R2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | M101NWT2 R2 | Diagonal Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600 [WSVGA] 117PPI | Active Area: | 222.72(H)×125.28(V) Mm |
| Outline Dim.: | 235(H)×143(V)×5.2(D) Mm | Bezel Area: | 226.42(H)×128.48(V) Mm |
| Form Style: | Wedge (PCBA Bent, T≥5.2mm) | Designed For: | Netbook PC |
Product Description
Brand New Original M101NWT2 R2 1024x600 LCD screen Display panel In Stock
M101NWT2 R2 Product details :
| IVO LCD SCREEN M101NWT2 R2 | |
| Manufacturer | IVO |
| Model Name | M101NWT2 R2 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 117PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 222.72 × 125.28 (H×V) |
| Outline(mm) | 235 × 143 × 5.2 (H×V×D) |
| Bezel Area(mm) | 226.42 × 128.48 (H×V) |
| Treatment | Antiglare, Hard coating |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Min.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Response | 3/5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 10K hours , With LED Driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Netbook PC |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Brand New Original M101NWT2 R2 1024x600 LCD screen Display panel In Stock | |
