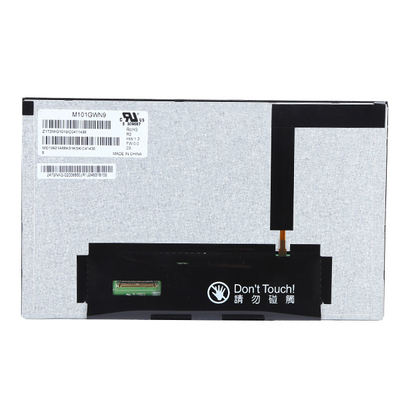

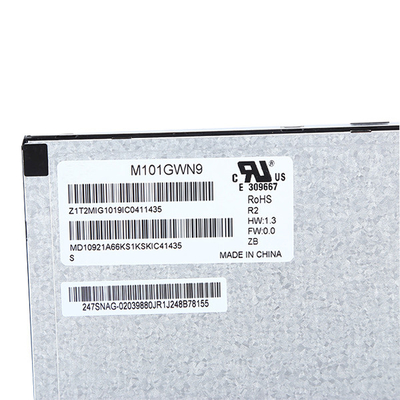

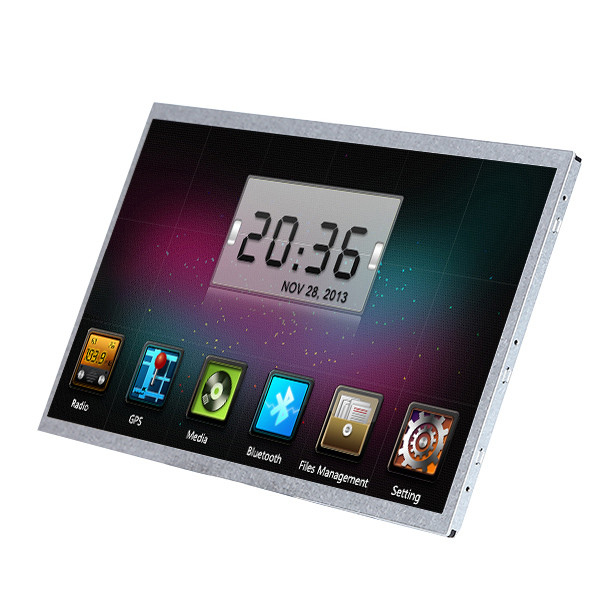

IVO M101GWN9 R2 10.1 inch 1024*600 40 pins lcd screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M101GWN9 R2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | M101GWN9 R2 | Panel Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA, 117PPI | Display Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 225.72(W)×128.28(H) Mm | Outline Size: | 235(W)×143(H)×8.04(D) Mm |
| Weight: | 310g (Typ.) | Application: | Industrial |
Product Description
IVO M101GWN9 R2 10.1 inch 1024*600 40 pins lcd screen display
M101GWN9 R2 Product details :
| IVO LCD SCREEN M101GWN9 R2 | |
| Manufacturer | IVO |
| Model Name | M101GWN9 R2 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 117PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 222.72 × 125.28 (H×V) |
| Outline(mm) | 235 × 143 × 8.04 (H×V×D) |
| Bezel Area(mm) | 225.72 × 128.28 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 6/10 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 45% NTSC |
| Backlight | WLED ,30K hours , With LED Driver |
| Mass | 310g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| IVO M101GWN9 R2 10.1 inch 1024*600 40 pins lcd screen display | |
M101GWN9 R2 Payment:
A.We can accept T/T and Western Union remittances and money orders, the best way is direct order payment. You can choose aconvenient payment method. If you need other payment methods, please let us know before ordering
B.Full payment must be made within 7 days after the order is placed, otherwise the order will be invalid or be cancelled by the system.
C.When filling in the buyer information, please make sure you have filled in the contact person, address, zip code, phone number and other detailed information.
M101GWN9 R2 Shippment & Packing
M101GWN9 R2 Packing:
A.Single samples or small quantities are packed in blister bags and then packed in cardboard boxes.
B.The original box packaging, anti-static bag + bubble bag + knife holder isolation cardboard +standard export strong carton packaging, all packaging is protected by an outer box and strapping to ensure safe transportation of materials.
M101GWN9 R2 Shipping:
At first,we will shipping according to your requirement.
Then,we will choose better shipping way for you if you need,Items will be shipped ASAP after payment confirmed.
M101GWN9 R2 Excellent After-sale Service:
180 days Warranty
Your inquiry will be replied within 1 hours
You will be support by Passion & Professinal Sales Team Team
M101GWN9 R2 FAQ:
Q: Can you declared low value for my order M101GWN9 R2 when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the lcd panel M101GWN9 R2 I received can't work ?
A: IVO M101GWN9 R2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd's quality and lifetime better than that compatible lcd .
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
