NV156FHM-N4C 15.6 inch slim 30pin FHD laptop screen laptop lcd monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV156FHM-N4C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV156FHM-N4C (BOE0704E) | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 350.66 × 216.15 × 3.2 (H×V×D) | Luminance: | 400 Cd/m² (Typ.) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
Product Description
NV156FHM-N4C 15.6 inch slim 30pin FHD laptop screen laptop lcd monitor
NV156FHM-N4C (BOE0704E) Product details :
| BOE LCD SCREEN NV156FHM-N4C (BOE0704E) | |
| Manufacturer | BOE |
| Model Name | NV156FHM-N4C (BOE0704E) |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 216.68 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 100% sRGB |
| Backlight | 11S6P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

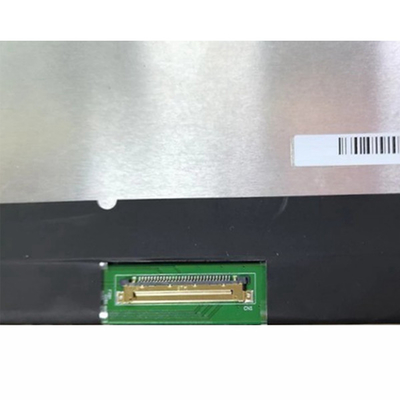

| Signal Type | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NV156FHM-N4C 15.6 inch slim 30pin FHD laptop screen laptop lcd monitor | |
NV156FHM-N4C (BOE0704E) Touch screen and assembly:
Phone touch screen ,Table Touch Screen,Laptop Touch Screen
Compatible with Apple,Samsung,Asus,Acer,Amazon,Sony,Toshiba,Dell,Lenovo,Microsoft,HTC,Huawei
YONGS Product NV156FHM-N4C (BOE0704E) :
Size:18.5”,20”,23” 26”, 27”
Quality:100% brand new ,Grade A+
Warranty: 30days
NV156FHM-N4C (BOE0704E) Payment Term:
T/T,Western Union,MoneyGram,PayPal
Our business our is Monday to Friday 10:00AM to 6:00PM Central Time.
NV156FHM-N4C (BOE0704E) Shippment & Packing
NV156FHM-N4C (BOE0704E) Packaging & Shipping:
1. Shipment Time: will be shipped within 3 days upon receipt of payment
2. Shipment Port: HongKong/Shenzhen
3. Express: shipping through DHL,FedEx,UPS,TNT,EMS or through your own forwarder.
4.Packaging:Original industrial packaging & QXD-Special-design-packaging,
In the pass 10 years, broken rate during shipment is less than 0.08 percent .
NV156FHM-N4C (BOE0704E) Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
NV156FHM-N4C (BOE0704E) FAQ:
Q: Can you give me a discount if I need a large quantity of NV156FHM-N4C (BOE0704E) ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: Can you give me a discount if I need a large quantity of BOE NV156FHM-N4C (BOE0704E) ?
A: Of course!If you make a large order, we will give you a discount.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
