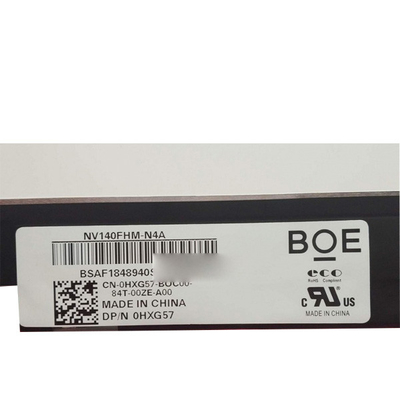

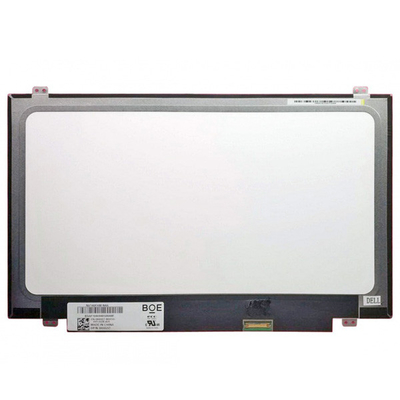

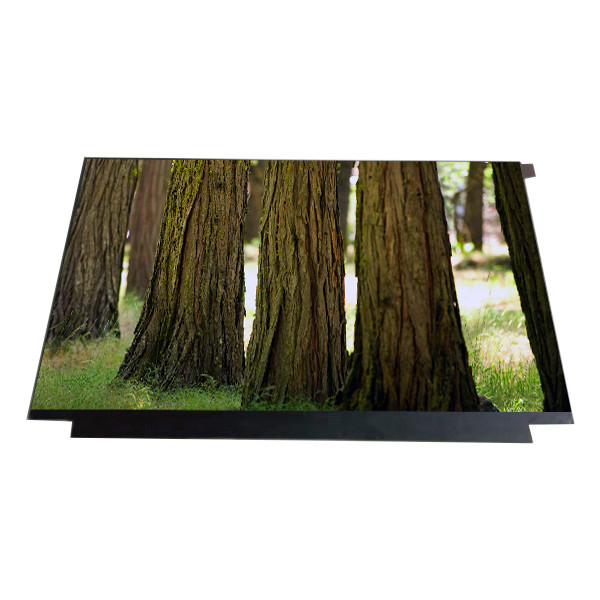

NV140FHM-N4A 14.0 Inch Laptop LCD Panel FHD 1920*1080 IPS Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140FHM-N4A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV140FHM-N4A | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 157PPI | Active Area(mm): | 309.31 × 173.99 (H×V) |
| Outline(mm): | 320.4 × 205.1 × 3 (H×V×D) | Treatment: | Antiglare, Hard Coating (3H) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
Product Description
NV140FHM-N4A 14.0 Inch Laptop LCD Panel FHD 1920*1080 IPS Screen
NV140FHM-N4A Product details :
| BOE LCD SCREEN NV140FHM-N4A | |
| Manufacturer | BOE |
| Model Name | NV140FHM-N4A |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.31 × 173.99 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 46% NTSC |
| Backlight | 8S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NV140FHM-N4A 14.0 Inch Laptop LCD Panel FHD 1920*1080 IPS Screen | |
NV140FHM-N4A Advantage:
High Quality!
Fast Delivery!
Competitive Price!
Long-term Supply!
100% Original A Grade!
Excellent After-sales Service!
Welcome to contact us and get our best service!
*Since the logistics costs are always changing, in order to get the most favorable logistics costs, please click here to contact us.
NV140FHM-N4A Payment:
Payment: T/T, WESTERN UNION, PAYPAL, ESCROW
Kindly Notice
1. Import duties taxes and other customs related charges are not included in the price
2. If you pay for it by PayPal, please confirm that your payment address is the same as your PayPal address
NV140FHM-N4A Important Tips:
1. Please keep the warranty label intact, any broken label will cause warranty to be ceased automatically.
2. Please check carefully if the cargo in good package and function well when you receive it.
NV140FHM-N4A Shippment & Packing
NV140FHM-N4A Shipping:
Deliverly Port: HK, SZ
Leave time :1-2 days
Type of shipping: Express (DHL, UPS ,FEDEX), ordinary mail (EMS,HK Post), AIR shipping ,Board shipping
Express: 4-7 working days can arrived
Ordinary mail: 15-20 working days can arrived
NV140FHM-N4A FAQ:
Q: How to order BOE lcd panel NV140FHM-N4A ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
