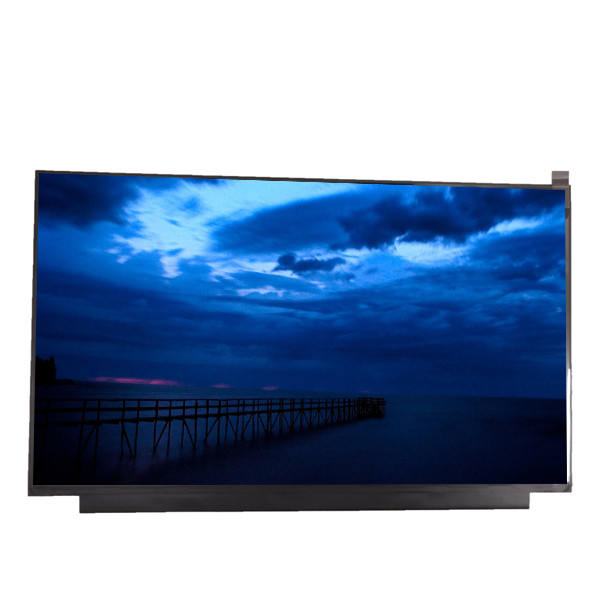

BOE NV125FHM-N82 12.5 inch 1920(RGB)×1080 30pin slim ips lcd laptop screen for Dell Latitude 12 7280
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV125FHM-N82 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NV125FHM-N82 (BOE0691) | Diagonal Size: | 12.5 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 176PPI | Active Area: | 276.48(H)×155.52(V) Mm |
| Outline Dim.: | 282.4(H)×179.32(V)×2.6(D) Mm | Support Color: | 16.7M 50% NTSC |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
Product Description
BOE NV125FHM-N82 12.5 inch 1920(RGB)×1080 30pin slim ips lcd laptop screen for Dell Latitude 12 7280
NV116WHM-N43 Product details :
| BOE LCD SCREEN NV125FHM-N82 (BOE0691) | |
| Manufacturer | BOE |
| Model Name | NV125FHM-N82 (BOE0691) |
| Screen Size | 12.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 176PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 276.48 × 155.52 (H×V) |
| Outline(mm) | 282.4 × 179.32 × 2.6 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 9S3P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , RBR (1.62G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE NV125FHM-N82 12.5 inch 1920(RGB)×1080 30pin slim ips lcd laptop screen for Dell Latitude 12 7280 | |
NV116WHM-N43 Our advantage:
1. we direcltly buy from the factory of LG / BOE and Samsung,so we can provide the best price
2.we have the largest stock from size 8'9-17'3 inch.
3. 6 months warranty available from the date we sell the screen.
4. we have specialized in this field for 10 years with good resource, good reputation and professional engineers.
NV116WHM-N43 Shippment & Packing
NV116WHM-N43 Package & Shipping:
1. Warranty: 6 months
2. Leading time: 3-5days after payment confirmed
3. Shipping method: DHL, FedEx, UPS, EMS etc fast shipping
4. Packing: Antistatic bag & Bubble bag & Foam Box & Strong Carton box
NV116WHM-N43 After sales servixce:
A. Only accept the item we sell
B. Need the list of returns with the product No and Qty
C. The returns need our Bar No., Label, and our test report, Or we could not recognize our products sold.
NV116WHM-N43 FAQ:
Q: Can You declare my order of lcd panel NV125FHM-N82 (BOE0691) at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of NV125FHM-N82 (BOE0691) ?
A: 90 days warranty .
Q: How can I trace my order of BOE NV125FHM-N82 (BOE0691) ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders for NV125FHM-N82 (BOE0691) ?
A: Of course!sample order is welcome !
