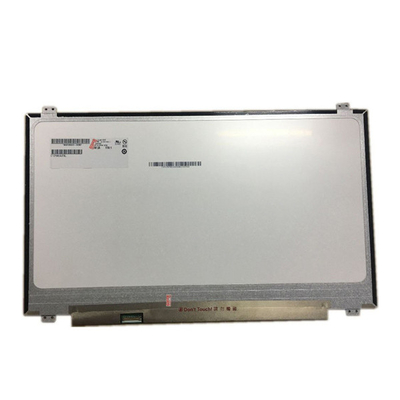

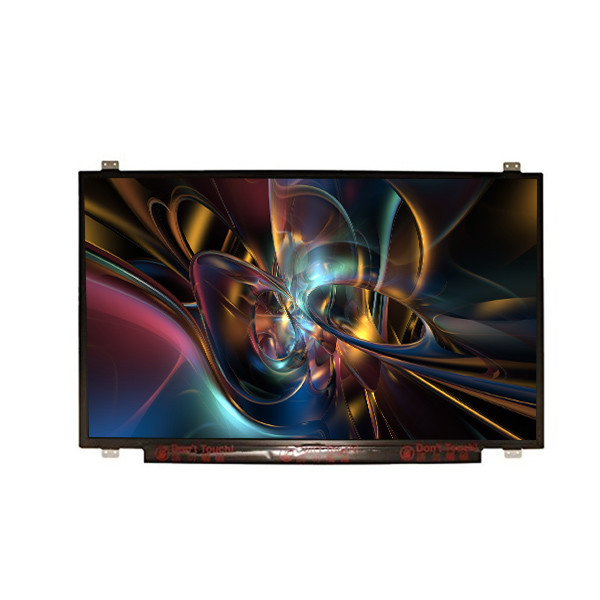

For HP 17-u NT173WDM-N21 LED Laptop Screen Panel Replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NT173WDM-N21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NT173WDM-N21 (BOE0660) | Panel Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+, 106PPI | Display Area: | 382.08(W)×214.92(H) Mm |
| Outline Size: | 398.1(W)×250.5(H)×4(D) Mm | Best View On: | 6 O'clock |
| Shape Style: | Flat (PCBA Flat, T3.4~4.0mm) | Application: | Laptop / Industrial |
Product Description
For HP 17-u NT173WDM-N21 LED Laptop Screen Panel Replacement
NT173WDM-N21 (BOE0660) Product details :
| BOE LCD SCREEN NT173WDM-N21 (BOE0660) | |
| Manufacturer | BOE |
| Model Name | NT173WDM-N21 (BOE0660) |
| Screen Size | 17.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1600(RGB)×900 (HD+) 106PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 382.08 × 214.92 (H×V) |
| Outline(mm) | 398.1 × 250.5 × 4 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Min.) (TM) |
| Viewing Angle | 45/45/15/30 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(G to G) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 60% NTSC |
| Backlight | 7S6P WLED , 15K hours , With LED Driver |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , eDP1.2 , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| For HP 17-u NT173WDM-N21 LED Laptop Screen Panel Replacement | |
NT173WDM-N21 (BOE0660) Products:
1.Laptop LCD and LED screen: from 4.5 inch to 18.4 inch
a. Size: 8.9", 9.7”, 10.1", 10.2", 11.1", 11.6", 12.1", 13.1, 13.3", 14.0", 14.1", 14.5”, 15.0", 15.2”, 15.4", 15.6", 16.0", 17.0", 17.3", 18.4"
b. Resolution:WSVGA, WXGA, WXGAHD, XGA, WXGA+, WXGA++
c. Backlight: LED,1xCCFL,2xCCFL
2.Touch panels for tablet PC of ACER / ASUS/ APPLE/ SAMSUNG, ETC.
3.Touch Screen with LED for Tablet of ACER / ASUS / APPLE / SAMSUNG,ETC.
NT173WDM-N21 (BOE0660) Shippment & Packing
NT173WDM-N21 (BOE0660) Shipping Terms:
Delivery will be arranged in 1-3 days once we received payment.Usually, we ship goods via customers' accounts like DHL,UPS,TNT and so on or delivered as clients' request.If you have forwarder,we can arrange your forwarder to pick up goods from our HK warehouse.
NT173WDM-N21 (BOE0660) Return and Warranty:
1.All the goods are inspected 2 times before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you much contact us within 24 hours of the receipt of your purchase.
2.All the items has 6 months warranty, If there has no man-made problem, we will replace for you freely. We own the best after-sale service. If any problems happen, we will do our best to solve the problem for customers.
3.All return items must be in its original conditions, including box and accessories. Men-made defects are not guaranteed, such as broken, scratched and so on.
4.For any items, please send by EMS or your local post when you send back.
NT173WDM-N21 (BOE0660) FAQ:
Q: How to order BOE lcd panel NT173WDM-N21 (BOE0660) ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel NT173WDM-N21 (BOE0660) I received can't work ?
A: BOE NT173WDM-N21 (BOE0660) will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd's quality and lifetime better than that compatible lcd .
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
