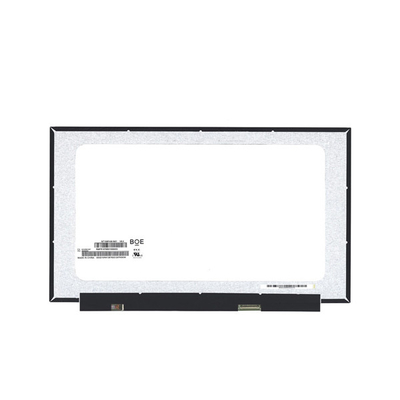

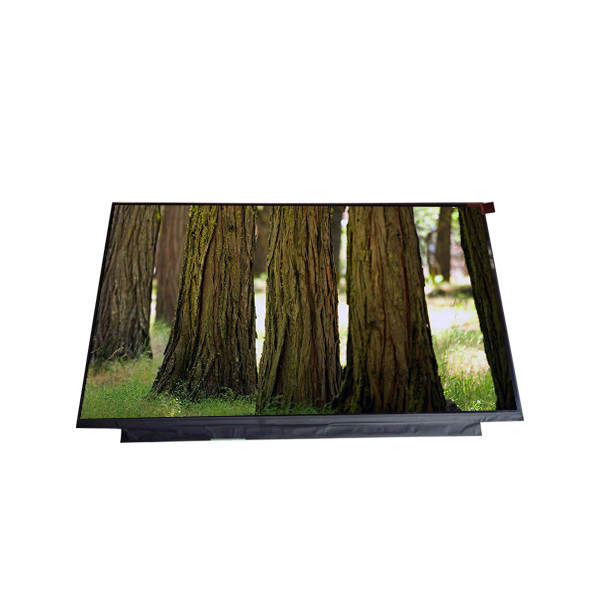

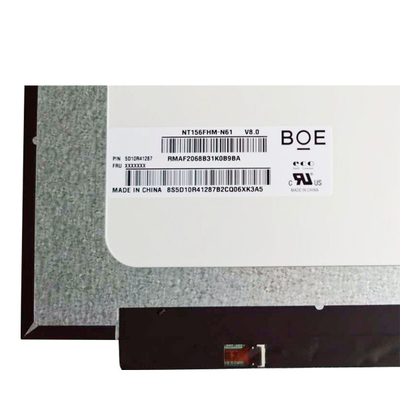

NT156FHM-N61 15.6 Inch Portable Computer LCD Display 1920x1080 Slim LED Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NT156FHM-N61 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NT156FHM-N61 (BOE07CB) | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 141PPI | Active Area: | 344.16(H)×193.59(V) Mm |
| Outline Dim.: | 350.66(H)×216.25(V)×3.2(D) Mm | Viewing Angle: | 45/45/20/40 (Typ.)(CR≥10) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | NT156FHM-N61 computer LCD display,PCBA Flat computer LCD display,1920x1080 Slim LED Screen |
||
Product Description
NT156FHM-N61 15.6 inch LCD portable computer LCD display 1920x1080 Slim LED screen
NT156FHM-N61 (BOE07CB) Product details :
| BOE LCD SCREEN NT156FHM-N61 | |
| Manufacturer | BOE |
| Model Name | NT156FHM-N61 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 216.25 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Min.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 12 (Typ.)(G to G) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 9S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop/ Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NT156FHM-N61 15.6 inch LCD portable computer LCD display 1920x1080 Slim LED screen | |
NT156FHM-N61 (BOE07CB) Reminder:
Due to frequent fluctuations in LCD Screen, product prices are for reference only. Please consult real-time prices and stock before purchasing. There are many types of components, and it is impossible to upload all of them. If you can't find the product you need, please call us!
NT156FHM-N61 (BOE07CB) Shippment & Packing
NT156FHM-N61 (BOE07CB) Shipping:
- We will arrange the shipment within 3 working days after the pay-ment reached.- We can ship Via your shipping account ( DHL /FedEx/ UPS/TNT),Or ship via our side
- We are not responsible for any accidents, delays or other issues that are the responsibility ofthe shipping service.
NT156FHM-N61 (BOE07CB) Refund & Replacement:
1.We provide 30-60 days warranty.
2.lf the item you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3.If the items is defective, pls notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the shipping cost incurre
NT156FHM-N61 (BOE07CB) FAQ:
Q: Can You declare my order of NT156FHM-N61 (BOE07CB) to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NT156FHM-N61 (BOE07CB) ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NT156FHM-N61 (BOE07CB) ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of NT156FHM-N61 (BOE07CB) ?
A: We accept T/T , Paypal , western union .
