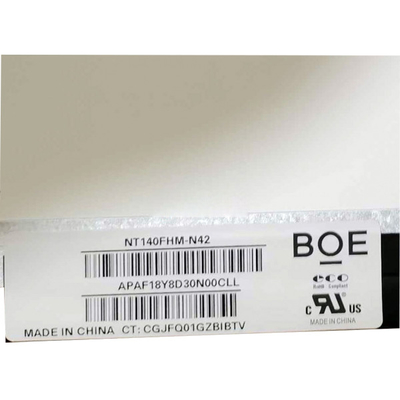

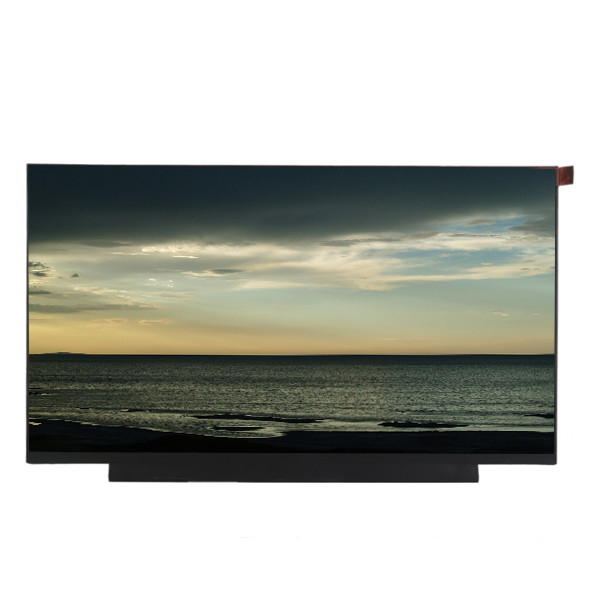

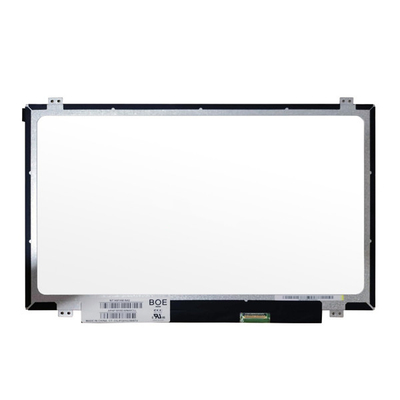

NT140FHM-N42 LCD Panel Display RGB 1920x1080 Resolution EDP 30 Pins Interface For Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NT140FHM-N42 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NT140FHM-N42 (BOE0714) | Screen Size: | 11.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 [FHD] 157PPI | Active Area: | 309.14(H)×173.89(V) Mm |
| Outline Dim.: | 320.4(H)×205.1(V)×3(D) Mm | Response Time: | 16 (Typ.)(Tr+Td) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | NT140FHM-N42 LCD Panel Display,EDP 30 Pins LCD Panel Display |
||
Product Description
14.0 inch Lcd Display NT140FHM-N42 1920(RGB)×1080 Resolution Lcd Panel Display EDP 30 Pins Interface Screen For Laptop
NT140FHM-N42 (BOE0714) Product details :
| BOE LCD SCREEN NT140FHM-N42 (BOE0714) | |
| Manufacturer | BOE |
| Model Name | NT140FHM-N42 (BOE0714) |
| Screen Size | 14.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.14 × 173.89 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 16(Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 60% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 14.0 inch Lcd Display NT140FHM-N42 1920(RGB)×1080 Resolution Lcd Panel Display EDP 30 Pins Interface Screen For Laptop | |
NT140FHM-N42 (BOE0714) Payment Information:
1. We support the payment method: Accept T/T / Western Union / ESCROW / Paypal / Wechat Pay / Alipay.
2. If you prefer to other payment terms, please contact us.
3. All the prices are FOB Shenzhen Price,not including shipping cost and trading charges.
4. We will send the parts to you within 3-5 workdays after receiving your payment.
5. Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.
NT140FHM-N42 (BOE0714) Shippment & Packing
NT140FHM-N42 (BOE0714) Shipping:
1. We will ship the items within 7 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account
NT140FHM-N42 (BOE0714) Refund & Replacement:
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items are defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
NT140FHM-N42 (BOE0714) Contact Us:
If you have any question, please contact us via E-mail or Trademanager.
NT140FHM-N42 (BOE0714) FAQ:
Q: Do you accept sample orders for NT140FHM-N42 (BOE0714) ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of NT140FHM-N42 (BOE0714) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for NT140FHM-N42 (BOE0714) ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my goods NT140FHM-N42 (BOE0714) by credit card ?
A: Yes!you can use your credit card through your Paypal account.
