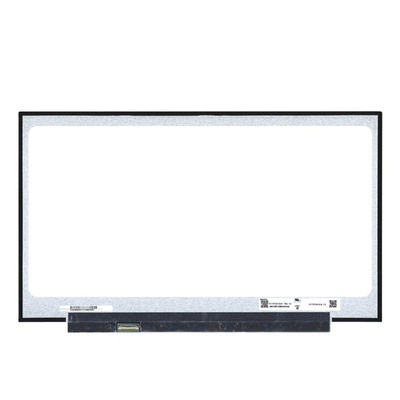

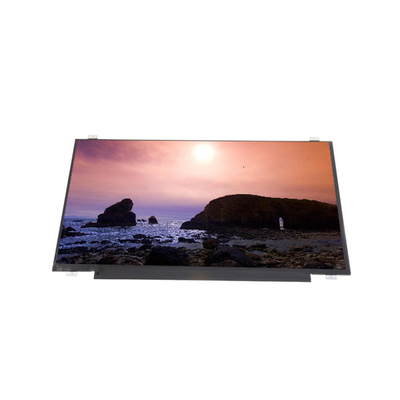

N173FGA-E34 LED Laptop Panel 2k 1920X1080 106PPI 17.3 Inch IPS Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N173FGA-E34 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N173FGA-E34 | Screen Size: | 17.3 Inch |
|---|---|---|---|
| Pixel Number: | 1600(RGB)×900 (HD+) 106PPI | Active Area(mm): | 382.08 × 214.92 (H×V) |
| Outline(mm): | 398.1 × 250.5 × 4 (H×V×D) | Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) |
| Color Depth: | 262K 60% NTSC | Designed For: | Laptop |
| High Light: | N173FGA-E34 LED laptop panel,RGB IPS LED laptop panel |
||
Product Description
N173FGA-E34 17.3 inch ips monitor 2k 1920*1080 LED laptop panel
N173FGA-E34 Product details :
| Innolux LCD SCREEN N173FGA-E34 | |
| Manufacturer | Innolux |
| Model Name | N173FGA-E34 |
| Screen Size | 17.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1600(RGB)×900 (HD+) 106PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 382.08 × 214.92 (H×V) |
| Outline(mm) | 398.1 × 250.5 × 4 (H×V×D) |
| Bezel Area(mm) | 385.68 × 218.32 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 60% NTSC |
| Backlight | WLED , 15K hours |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N173FGA-E34 17.3 inch ips monitor 2k 1920*1080 LED laptop panel | |
