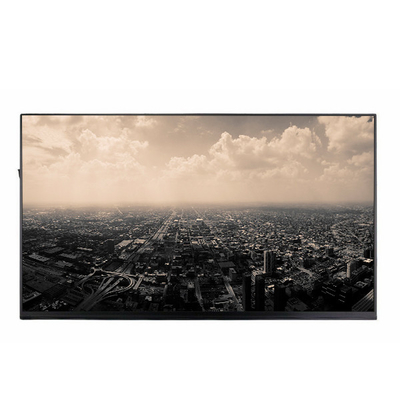

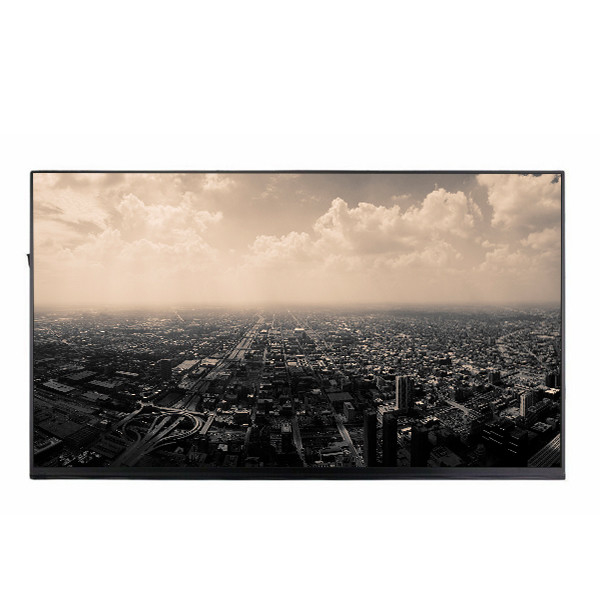

MV238FHM-N20 BOE 23.8 Inch Laptop LCD Screen Panel High Resolution RGB 1920X1080
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHM-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHM-N20 | Screen Size: | 23.8 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 92PPI | Active Area(mm): | 527.04 × 296.46 (H×V) |
| Outline(mm): | 535 × 313 × 13.2 (H×V×D) | Response: | 14 (Typ.)(G To G) Ms |
| Mass: | 2.20Kgs (Typ.) | Designed For: | Desktop Monitor |
| High Light: | MV238FHM-N20 laptop lcd screen panel,BOE laptop lcd screen panel |
||
Product Description
MV238FHM-N20 BOE 23.8 inch laptop lcd screen panel tft-lcd desktop display high resolution 1920(RGB)×1080 panel
MV238FHM-N20 Product details :
1: Products: We have all the spare parts and accessories for all the models of mobile phones,laptops, and tablet PC
2 : Price can be negotiable based on quantity; delivery terms;
3 : Samples: We can offer samples ,but we kindly ask you pay for samples and the freight.
4: Quality guarantee: We will inspect the appearance and test functions of all of our items before shipping, so it is very important for our customers to let professional operators test and install them.
5: Package: All the items will be packed very well to avoid damage.
6: After-service: We provide best after-service, any problem will be solved successfully and smoothly, 100% satisfaction guaranteed.

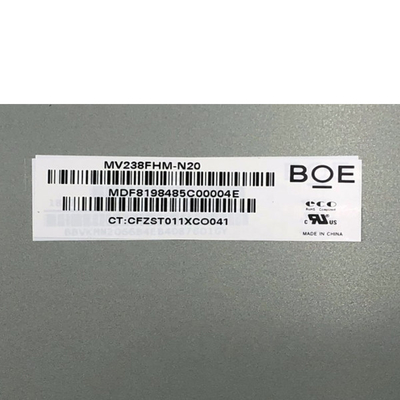

| BOE LCD SCREEN MV238FHM-N20 | |
| Manufacturer | BOE |
| Model Name | MV238FHM-N20 |
| Screen Size | 23.8 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 92PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 527.04 × 296.46 (H×V) |
| Outline(mm) | 535 × 313 × 13.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 74% NTSC |
| Backlight | 3 strings WLED , 30K hours , No Driver |
| Mass | 2.20Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| MV238FHM-N20 BOE 23.8 inch laptop lcd screen panel tft-lcd desktop display high resolution 1920(RGB)×1080 panel | |
MV238FHM-N20 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
MV238FHM-N20 Payment Term:
T/T,Western Union,MoneyGram,PayPal
Our business our is Monday to Friday 10:00AM to 6:00PM Central Time.
MV238FHM-N20 Shippment & Packing
MV238FHM-N20 PACKAGE:
Standard export carton packing.
MV238FHM-N20 DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
MV238FHM-N20 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
MV238FHM-N20 FAQ:
Q: Can You declare my order of MV238FHM-N20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of MV238FHM-N20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of MV238FHM-N20 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
