TFT IPS LCD Panel Display RGB 1366X768 BOE 18.5 Inch MT185WHM-N20
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MT185WHM-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | MT185WHM-N20 | Diagonal Size: | 18.5 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 [WXGA] 84PPI | Active Area: | 409.8(H)×230.4(V) Mm |
| Outline Dim.: | 430.4(H)×254.6(V)×11.4(D) Mm | Bezel Area: | 413.4(H)×234.0(V) Mm |
| Weight: | 1.31Kgs (Typ.) | Designed For: | Desktop Monitor / Industrial |
| High Light: | TFT IPS LCD Panel Display,MT185WHM-N20 LCD Panel Display |
||
Product Description

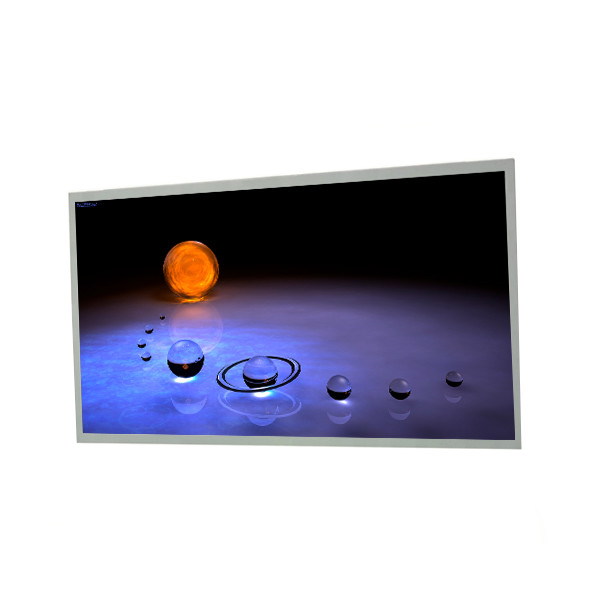

MT185WHM-N20 BOE 18.5 inch 1366(RGB)×768 TFT IPS LCD Panel Display
MT185WHM-N20 Product details :
| BOE LCD SCREEN MT185WHM-N20 | |
| Manufacturer | BOE |
| Model Name | MT185WHM-N20 |
| Screen Size | 18.5 inch |
| Screen Type | CELL , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 84PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 409.8 × 230.4 (H×V) |
| Outline(mm) | 430.4 × 254.6 × 11.4 (H×V×D) |
| Bezel Area(mm) | 413.4 × 234.0 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR＞10) |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 10S4P WLED , 30K hours , No Driver |
| Mass | 1.31Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| MT185WHM-N20 BOE 18.5 inch 1366(RGB)×768 TFT IPS LCD Panel Display | |
MT185WHM-N20 Advantage:
1. Professional laptop LCD Screen manufacturer with 10 years experience
2. Strong R&D department to design new models
3. Good pre-sale and after-sales service
4. Best technical support from our R&D department
MT185WHM-N20 payment terms:
1.The guarantee period is 60 days.
2.About the payment terms,we can accept Paypal,Western Union,TT in adcance,Alipay amd Ecrow terms.
MT185WHM-N20 Shippment & Packing
MT185WHM-N20 Shipping & Delivery term:
1.We will ship the items within 1-3 working days after the payment received.
2.We can ship to you by UPS/DHL/TNT/EMS/FEDEX/ARMX/DPEX/EUB/CHINA POST&HK POST. Pls inform us the shipping way you prefer directly.
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4.Any import fees or charges are the buyer's responsibility.
MT185WHM-N20 Refund & Replacement:
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items are defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
MT185WHM-N20 FAQ:
Q: How long is the warranty of MT185WHM-N20 ?
A: 90days warranty .
Q: Do you accept sample orders for BOE MT185WHM-N20 ?
A: Of course!sample order is welcome !
Q: Can I pay my goods MT185WHM-N20 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods MT185WHM-N20 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
