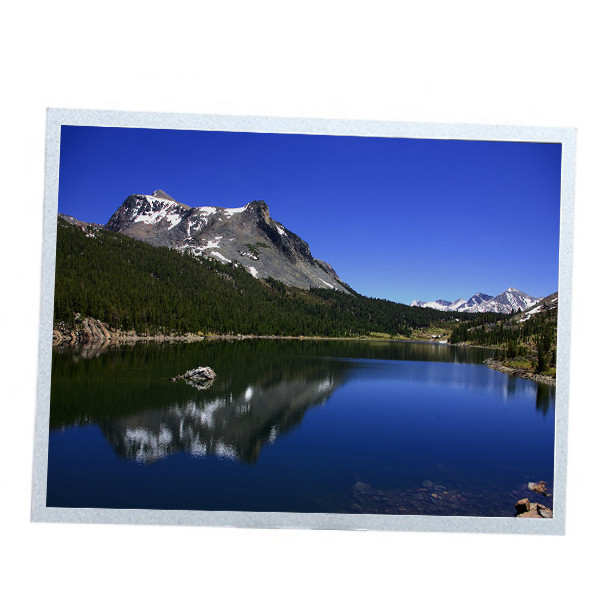

15.0 Inch Industrial LCD Panel RGB 1024X768 LVDS 20 Pins HM150X01-102
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HM150X01-102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HM150X01-102 | Diagonal Size: | 15.0 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 85PPI | Active Area: | 304.128(H)×228.096(V) Mm |
| Outline Dim.: | 326.5(H)×253.5(V)×11.9(D) Mm | Bezel Area: | 307.4(H)×231.3(V) Mm |
| Weight: | 1.04Kgs (Typ.) | Designed For: | Industrial / Medical Imaging |
| High Light: | LVDS Industrial LCD Panel,HM150X01-102 Industrial LCD Panel |
||
Product Description
New Original 15.0 inch 1024(RGB)×768 Lvds 20 Pins Industrial LCD Panel HM150X01-102
HM150X01-102 Product details :
| BOE LCD SCREEN HM150X01-102 | |
| Manufacturer | BOE |
| Model Name | HM150X01-102 |
| Screen Size | 15.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 85PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 304.128 × 228.096 (H×V) |
| Outline(mm) | 326.5 × 253.5 × 11.9 (H×V×D) |
| Bezel Area(mm) | 307.4 × 231.3 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80(Typ.)(CR≥10) |
| Response | 8(Typ.)(Tr+Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 60% NTSC |
| Backlight | 9S3P WLED , 50K hours , With LED Driver |
| Mass | 1.04Kgs (Typ.) |
| Used for | Industrial Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| New Original 15.0 inch 1024(RGB)×768 Lvds 20 Pins Industrial LCD Panel HM150X01-102 | |
HM150X01-102 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
HM150X01-102 Shippment & Packing
HM150X01-102 Delivery:
With years of export experience along with excellent quality, advanced services and competitive prices, YONGS has won numerous customers' trust and support.
HM150X01-102 Shipping:
1. Shipment Time: Cargo will be shipped within 3 days upon receipt of payment.
2. Shipment Port: HongKong/Shenzhen
3. Express: Wecan ship through DHL,FedEx,UPS,TNT,EMS,Air Cargo,Sea Cargo or through your own forwarder.
HM150X01-102 Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
HM150X01-102 FAQ:
Q: Can you give me a discount if I need a large quantity of HM150X01-102 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HM150X01-102 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HM150X01-102 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of HM150X01-102 ?
A: We accept T/T , Paypal , western union .
