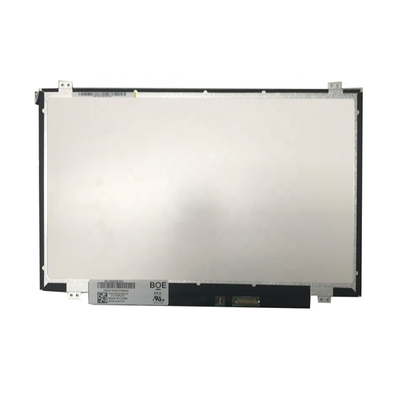

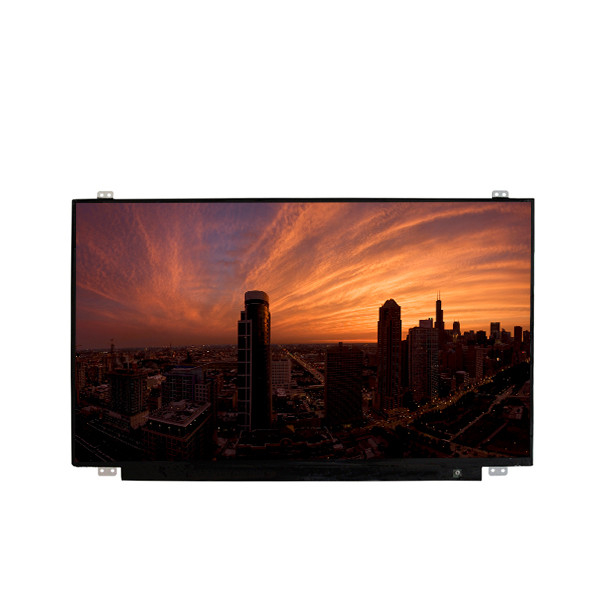

HB140WX1-301 Laptop LCD Screen 14.0 Inch EDP LCD Panel 30PIN
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HB140WX1-301 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HB140WX1-301 | Diagonal Size: | 14.0 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 [WXGA] 112PPI | Active Area: | 309.399(H)×173.952(V) Mm |
| Outline Dim.: | 320.4(H)×205.1(V)×3.6(D) Mm | Response Time: | 12 (Typ.)(Tr+Td) |
| Form Style: | Flat (PCBA Flat, T3.4~4.0mm) | Designed For: | Laptop |
| High Light: | HB140WX1-301 Laptop LCD Screen,EDP Laptop LCD Screen |
||
Product Description
Original 14.0 inch led screen HB140WX1-301 Laptop LCD Screen eDP lcd panel 30PIN
HB140WX1-301 Product details :
| BOE LCD SCREEN HB140WX1-301 | |
| Manufacturer | BOE |
| Model Name | HB140WX1-301 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 112PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.399 × 173.952 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3.6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 12(Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 9S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Original 14.0 inch led screen HB140WX1-301 Laptop LCD Screen eDP lcd panel 30PIN | |
HB140WX1-301 About us:
We are supplier for laptop parts,like laptop LCD screen,laptop digitizer,laptop assembly, Macbook, Microsoft surface assembly etc. If you have any demand, pls contact us, we are pleasure to provide some good price for a reference,
HB140WX1-301 Important Notice:
Specific model of laptop model is manufactured with various screen sizes and resolutions. Laptop LCD resolution should not be upgraded or downgraded. Please carefully confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
HB140WX1-301 PAYMENT:
- we usually use TT.
- 100%L/C at sight.
- Westunion, paypal is available.
HB140WX1-301 Shippment & Packing
HB140WX1-301 Packaging:
Antistatic bag & Bubble bag & Foam Box $ Strong carton box.
HB140WX1-301 SHIPPING
- Package: Standard export cartons and wooden box
- Delivery Time: Within 15-20 days after receiving deposit.
- Shipping Way: By air or by sea.
- Quickly delivery:3-10 days can be delivered to your hands.
HB140WX1-301 FAQ:
Q: How long is the warranty of HB140WX1-301 ?
A: 90days warranty .
Q: How can I trace my order of BOE HB140WX1-301 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods HB140WX1-301 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods BOE HB140WX1-301 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
