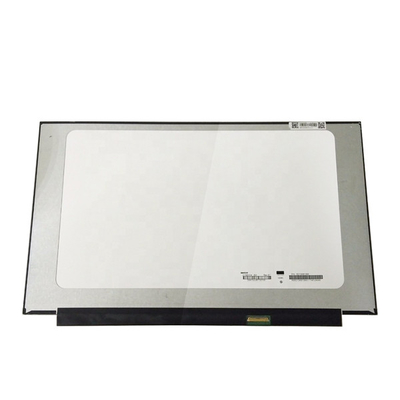

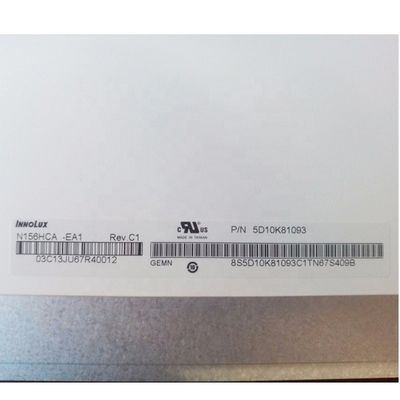

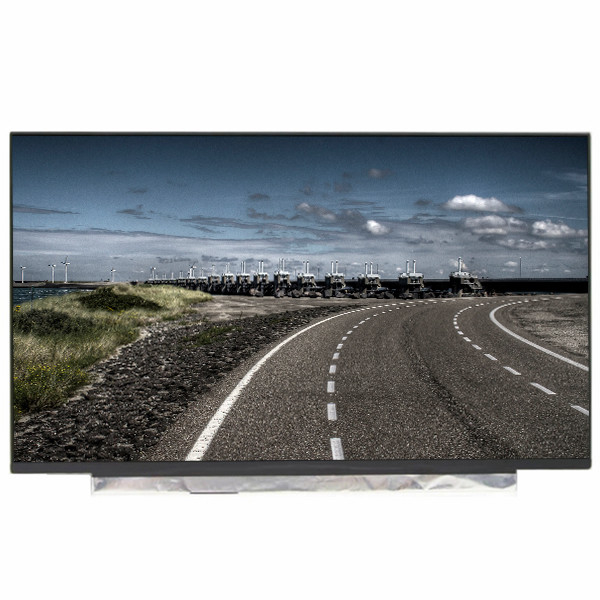

N156HCA-EA1 15.6 Inch Laptop LCD Screen 1920X1080 VGA Audio EDP Out Put
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N156HCA-EA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N156HCA-EA1 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 (FHD) 141PPI | Active Area: | 344.16 × 193.59 (H×V) |
| Viewing Angle: | 350.16 × 216 × 3.2 (H×V×D) | Support Color: | 89/89/89/89 (Typ.)(CR≥10) |
| Color Depth: | 262K 72% NTSC | Designed For: | Laptop Industrial |
| High Light: | EDP 15.6 inch laptop lcd screen,VGA Audio 15.6 inch laptop lcd screen,N156HCA-EA1 LCD Laptop Screen |
||
Product Description
N156HCA-EA1 1920*1080 with VGA Audio EDP Lcd controller board kit 15.6 inch lcd model EDP out put with speaker
N156HCA-EA1 Product details :
| Innolux LCD SCREEN N156HCA-EA1 | |
| Manufacturer | Innolux |
| Model Name | N156HCA-EA1 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.16 × 216 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K 72% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N156HCA-EA1 1920*1080 with VGA Audio EDP Lcd controller board kit 15.6 inch lcd model EDP out put with speaker | |
N156HCA-EA1 Advantage:
LONG HISTROY:
With 10 years professional manufacturing experience
HIGH QUALITY:
Design and manufacture high quality products by strict QC standard
FAST DELIVERY:
7-10 days for bulk order
SMALL ORDER ACCEPTABLE:
Small order is accepted, we treat every order well
WONDERFUL TEAM:
Professional sales team to offer fast response and good service
OEM/ODM ACCEPTABLE:
Over 8 years rich OEM/ODM experience for clients all over the world
ABUNDANT PRODUCTS:
Full product lines for high and amazing products
STANDARD WARRANTY:
1 year service is provided from the date of purchase
N156HCA-EA1 Payment:
We accept payment of T/T, Western Union,Paypal and cash only.
N156HCA-EA1 Garrantee:
We rigorously test and check our items to meet the toughest standards prior to shipping, if you encounter any problems please contact us via
Aliexpress messenger, We will do everything we can to make sure your happy with your order.
We offer 90 days warranty.
N156HCA-EA1 Shippment:
We will send the goods 3-5days after payment,.And we will send you the tracking number soon
We usually use DHL, UPS, FedEx, TNT, EMS and so on, because we have a good discount in these companies.But if buyers offer their own accounts, they are also welcome to pay for shipping from those accounts.
N156HCA-EA1 Returns and feedback:
*All returns must be notified before the return. We look forward to cooperating with rational and friendly customers. If you have any problems with the items you received, please contact us immediately.
*Because the buyer ordered the wrong parts, the buyer needs to pay the replacement shipping cost.
*The returned goods must have all original packaging and be in good condition.
*All items will be tested before shipment. If you encounter any problems, please contact me first and I will try my best to solve it for you.
N156HCA-EA1 FAQ:
Q: How long will I receive my goods N156HCA-EA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of N156HCA-EA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of N156HCA-EA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of N156HCA-EA1 ?
A: Of course!sample order is welcome !
N156HCA-EA1 Shippment & Packing
