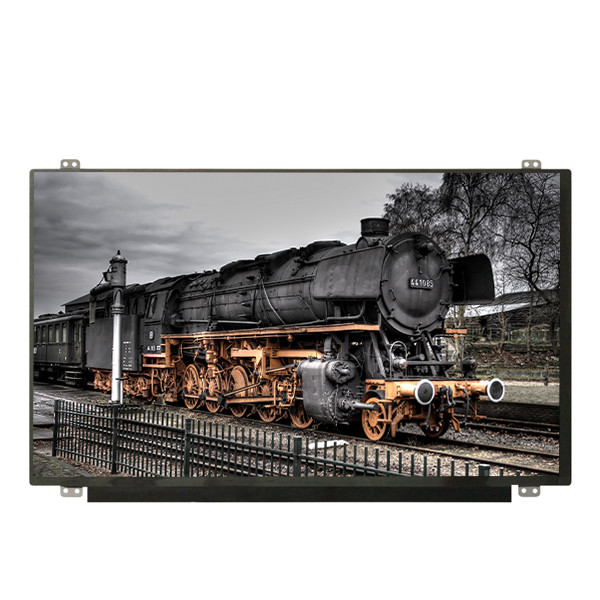

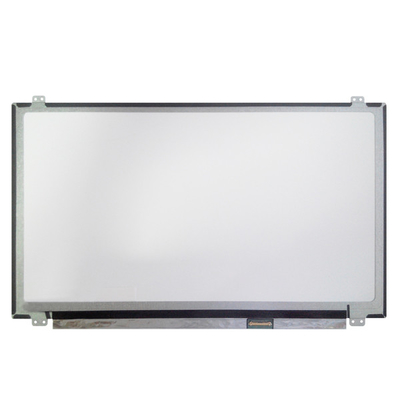

N156BGE-EA2 Innolux TFT IPS LCD Panel Display 15.6 Inch With HDMI To LVDS Controller Board
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N156BGE-EA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N156BGE-EA2 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 (WXGA) 100PPI | Active Area: | 344.232 × 193.536 (H×V) |
| Outline Dim.: | 359.5 × 223.8 × 3.2 (H×V×D) | Support Color: | 262K 45% NTSC |
| Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) | Designed For: | Laptop |
| High Light: | N156BGE-EA2 LCD panel display,HDMI To LVDS LCD panel display |
||
Product Description
N156BGE-EA2 Innolux 15.6 inch 1366*768 tft ips lcd panel display lcd module with H-DMI to lvds controller board
N156BGE-EA2 Product details :
| Innolux LCD SCREEN N156BGE-EA2 | |
| Manufacturer | Innolux |
| Model Name | N156BGE-EA2 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 100PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.232 × 193.536 (H×V) |
| Outline(mm) | 359.5 × 223.8 × 3.2 (H×V×D) |
| Bezel Area(mm) | 347.36 × 196.84 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

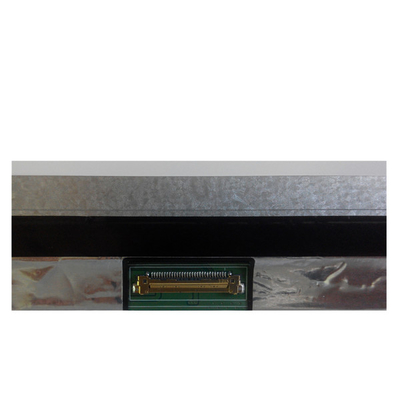

| Signal Type | eDP (1 Lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N156BGE-EA2 Innolux 15.6 inch 1366*768 tft ips lcd panel display lcd module with H-DMI to lvds controller board | |
N156BGE-EA2 Advantage:
LONG HISTROY:
With 10 years professional manufacturing experience
HIGH QUALITY:
Design and manufacture high quality products by strict QC standard
FAST DELIVERY:
7-10 days for bulk order
SMALL ORDER ACCEPTABLE:
Small order is accepted, we treat every order well
WONDERFUL TEAM:
Professional sales team to offer fast response and good service
OEM/ODM ACCEPTABLE:
Over 8 years rich OEM/ODM experience for clients all over the world
ABUNDANT PRODUCTS:
Full product lines for high and amazing products
STANDARD WARRANTY:
1 year service is provided from the date of purchase
N156BGE-EA2 Payment:
We accept payment of T/T, Western Union,Paypal and cash only.
N156BGE-EA2 Packing:
Packing Details : Packing based on the image,customized according to customer needs
Delivery Details : 3-15 days based on your quantity
N156BGE-EA2 Shippment:
We will send the goods 3-5days after payment,.And we will send you the tracking number soon
We usually use DHL, UPS, FedEx, TNT, EMS and so on, because we have a good discount in these companies.But if buyers offer their own accounts, they are also welcome to pay for shipping from those accounts.
N156BGE-EA2 Returns and feedback:
*All returns must be notified before the return. We look forward to cooperating with rational and friendly customers. If you have any problems with the items you received, please contact us immediately.
*Because the buyer ordered the wrong parts, the buyer needs to pay the replacement shipping cost.
*The returned goods must have all original packaging and be in good condition.
*All items will be tested before shipment. If you encounter any problems, please contact me first and I will try my best to solve it for you.
N156BGE-EA2 FAQ:
Q: Can you test the lcd panel N156BGE-EA2 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order N156BGE-EA2 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order N156BGE-EA2 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd N156BGE-EA2 ?
A: 90 days .
N156BGE-EA2 Shippment & Packing
