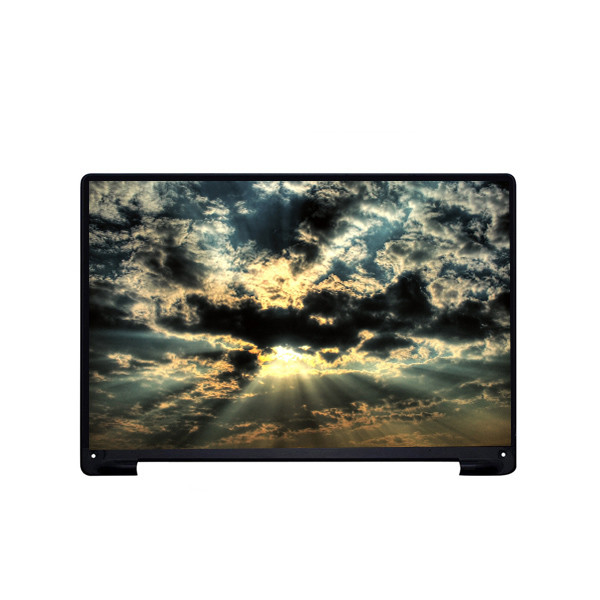

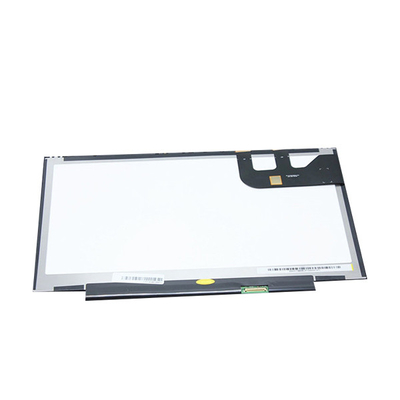

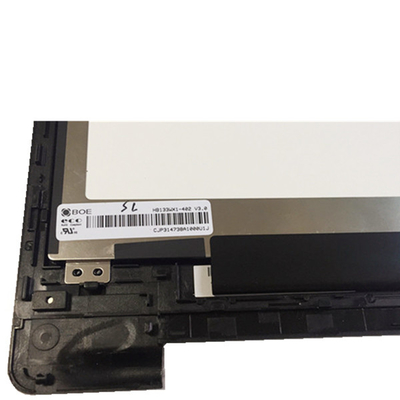

13.3 Inch 1366×768 HB133WX1-402 LCD Display Panel For Asus TP300 TP300L TP300LA TP300LD
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HB133WX1-402 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HB133WX1-402 (BOE05DF) | Diagonal Size: | 13.3 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 [WXGA] 118PPI | Active Area: | 293.42(H)×164.97(V) Mm |
| Outline Dim.: | 306.22(H)×195.2(V)×3(D) Mm | Support Color: | 262K 45% NTSC |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| Highlight: | Antiglare LCD Display Panel,HB133WX1-402 LCD Display Panel |
||
Product Description
New 13.3 inch 1366×768 HB133WX1-402 LCD Display Panel For Asus TP300 TP300L TP300LA TP300LD
HB133WX1-402 Product details :
| BOE LCD SCREEN HB133WX1-402 (BOE05DF) | |
| Manufacturer | BOE |
| Model Name | HB133WX1-402 (BOE05DF) |
| Screen Size | 13.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 118PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.42 × 164.97 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 12(Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 8S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , eDP1.2 , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| New 13.3 inch 1366×768 HB133WX1-402 LCD Display Panel For Asus TP300 TP300L TP300LA TP300LD | |
HB133WX1-402 Advantage:
LONG HISTROY:
With 10 years professional manufacturing experience
HIGH QUALITY:
Design and manufacture high quality products by strict QC standard
FAST DELIVERY:
7-10 days for bulk order
SMALL ORDER ACCEPTABLE:
Small order is accepted, we treat every order well
WONDERFUL TEAM:
Professional sales team to offer fast response and good service
OEM/ODM ACCEPTABLE:
Over 8 years rich OEM/ODM experience for clients all over the world
ABUNDANT PRODUCTS:
Full product lines for high and amazing products
STANDARD WARRANTY:
1 year service is provided from the date of purchase
HB133WX1-402 Payment:
We accept payment of T/T, Western Union,Paypal and cash only.
HB133WX1-402 Shippment & Packing
HB133WX1-402 Packing:
Packing Details : Packing based on the image,customized according to customer needs
Delivery Details : 3-15 days based on your quantity
HB133WX1-402 Shippment:
We will send the goods 3-5days after payment,.And we will send you the tracking number soon
We usually use DHL, UPS, FedEx, TNT, EMS and so on, because we have a good discount in these companies.But if buyers offer their own accounts, they are also welcome to pay for shipping from those accounts.
GV101WXM-N81-D850 FAQ:
Q: Can You declare my order of HB133WX1-402 (BOE05DF) to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods HB133WX1-402 (BOE05DF) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of HB133WX1-402 (BOE05DF) ?
A: Of course!If you make a large order, we will give you a discount.
