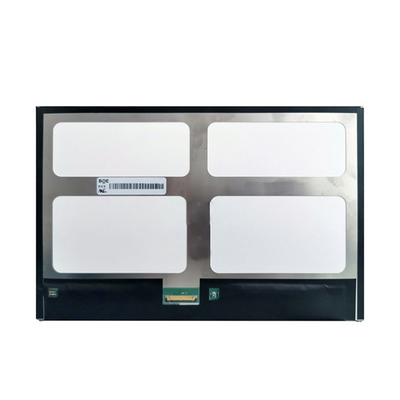

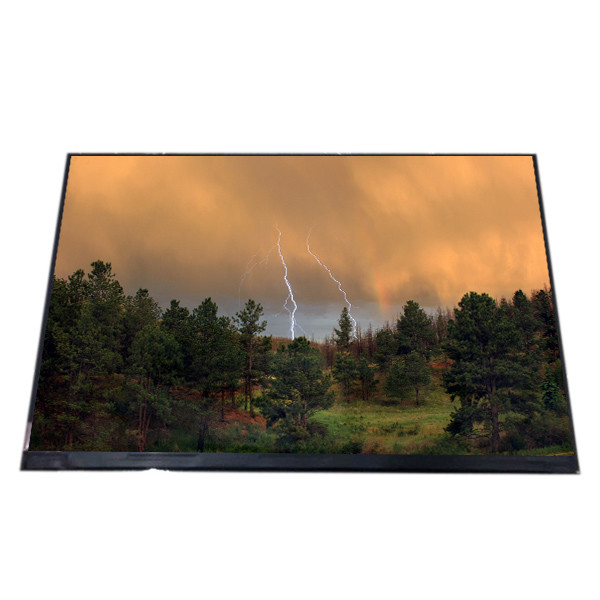

BOE GV101WXM-N81-D850 TFT LCD Module 10.1 Inch RGB 1280X800 WXGA For Industrial Use
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | GV101WXM-N81-D850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | GV101WXM-N81-D850 (BOE03F2) | Diagonal Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×800 [WXGA] 149PPI | Active Area: | 216.96(H)×135.6(V) Mm |
| Outline Dim.: | 228.3(H)×149.05(V)×2.6(D) Mm | Light Source: | WLED , 15K Hours , With LED Driver |
| Weight: | 155g (Max.) | Designed For: | Industrial |
| High Light: | BOE TFT LCD module,WXGA TFT LCD module |
||
Product Description
BOE GV101WXM-N81-D850 Original panel 10.1 inch 1280(RGB)×800 WXGA TFT LCD module for industrial use
GV101WXM-N81-D850 Product details :
| BOE LCD SCREEN GV101WXM-N81-D850 (BOE03F2) | |
| Manufacturer | BOE |
| Model Name | GV101WXM-N81-D850 (BOE03F2) |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.96 × 135.6 (H×V) |
| Outline(mm) | 228.3 × 149.05 × 2.6 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30(Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Mass | 155g (Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE GV101WXM-N81-D850 Original panel 10.1 inch 1280(RGB)×800 WXGA TFT LCD module for industrial use | |
GV101WXM-N81-D850 Purchase:
We offer a 24-hour online service to help buyers solve problems.
We provide buyers with the latest market information on a regular basis.
We have a large after-sales service team.
GV101WXM-N81-D850 Payment Term:
T/T,Western Union,MoneyGram,PayPal
Our business our is Monday to Friday 10:00AM to 6:00PM Central Time.
GV101WXM-N81-D850 Shipment Information:
1. We have our own warehouse, sampling, testing, packaging, delivery, one-stop, professional and secure
2. Professional test to ensure that the quality of the goods is the same as the sample.
3. Flexible delivery location, we support Shenzhen door to warehouse delivery. And express door-to-door service.
4. Fast and long-term after-sales service, the product will provide 3 to 6 months of package return service according to the order quantity. Subsequent indefinite consultation and technical support.
5. Secure payment method, we accept L/C, T/T, W/U payment methods according to the number of customer orders.
GV101WXM-N81-D850 Shipping:
Deliverly Port: HK, SZ
Leave time :1-2 days
Type of shipping: Express (DHL, UPS ,FEDEX), ordinary mail (EMS,HK Post), AIR shipping ,Board shipping
Express: 4-7 working days can arrived
Ordinary mail: 15-20 working days can arrived
GV101WXM-N81-D850 FAQ:
Q: Do you accept sample orders for GV101WXM-N81-D850 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of GV101WXM-N81-D850 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for GV101WXM-N81-D850 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of GV101WXM-N81-D850 ?
A: we will give you tracking number then you can trace your order from website.
