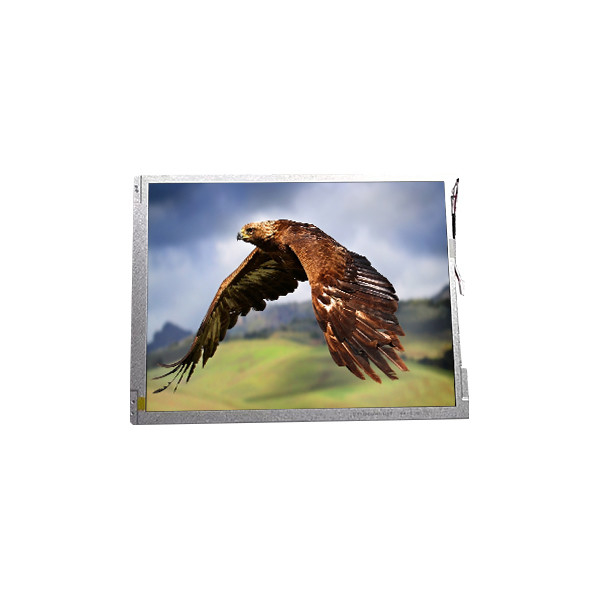

BOE 10.4 Inch TFT LCD Display LCD Screen 800X600 SVGA 96PPI ET104S0M-N11
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | ET104S0M-N11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ET104S0M-N11 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600 (SVGA) 96PPI | Active Area(mm): | 211.2 × 158.4 (H×V) |
| Outline(mm): | 236 × 176.9 × 5.9 (H×V×D) | Bezel Area(mm): | 215 × 162 (H×V) |
| Mass: | 288g (Typ.) | Used For: | Industrial |
| Highlight: | SVGA TFT LCD display,TFT LCD display ET104S0M-N11,BOE TFT lcd screen |
||
Product Description
BOE 10.4 inch 800*600 tft lcd display lcd screen ET104S0M-N11
ET104S0M-N11 Product details :
| BOE LCD SCREEN ET104S0M-N11 | |
| manufacturer | BOE |
| Model Name | ET104S0M-N11 |
| screen size | 10.4 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600 [SVGA] 96PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 211.2(H)×158.4(V) mm |
| physical dimension | 236(H)×176.9(V) ×5.9(D) mm |
| Visual size | 215(H)×162(V) mm |
| surface treatment | Antiglare (Haze 25%) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/65/75 (Typ.)(CR≥10) |
| Responding time | 30 (Typ.)(Tr+Td) |
| Number of color | 262K/16.2M 55% NTSC |
| Backlight type | WLED , 30K hours , W/O Driver |
| Panel weight | 288g (Typ.) |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| ET104S0M-N11 10.4 inch 800*600 350nits tft lcd display screen | |
ET104S0M-N11 Before you ordered:
1,Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen.
2,We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.If you can't accept it , please don't make the order . Thanks for your understanding.
3,please confirm whether the zip code and city of the address are correctbeforepacingthe order avoid delay in delivery
4,All items are tested before shipment.
ET104S0M-N11 Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
ET104S0M-N11 Shipment Information:
ET104S0M-N11 Shipping:
1.DHL/UPS/Fedex Express usually takes about 3-5 working days to the destination. And it’s about 5-8 working days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel take 7 to 30 days to ship to the worldwide.
2.We will send the goods within 3 business days after the full payment has been confirmed. If the payment is not available, your order will be closed automatically.
ET104S0M-N11 Warranty terms:
1.Warranty remains valid for 6 months from the date of delivery.
2.If any product is defective,please take photos of its working condition and then send photos to us.Our technicians will analyze the problem and offer solutions.
3.If the problem is still not solved under our technicians help,please safely pack the defective screens and send back to us within warranty period.After we receive the defective screens,we will send new and good replacements to you.
ET104S0M-N11 FAQ:
Q: Can you give me a discount if I need a large quantity of ET104S0M-N11 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of ET104S0M-N11 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods ET104S0M-N11 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
