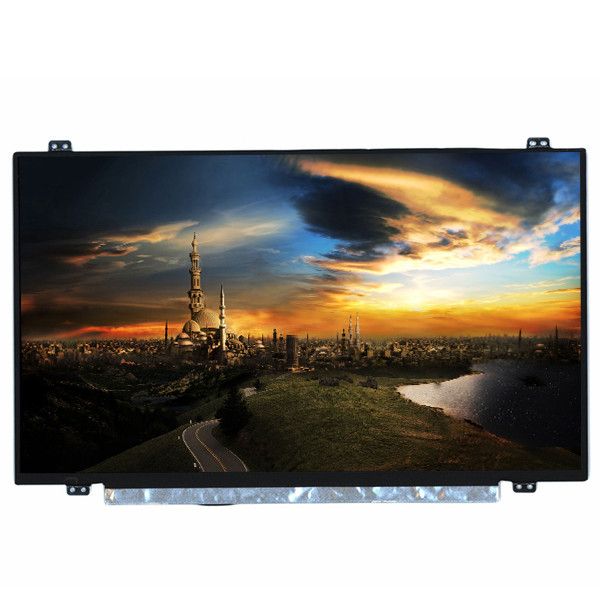

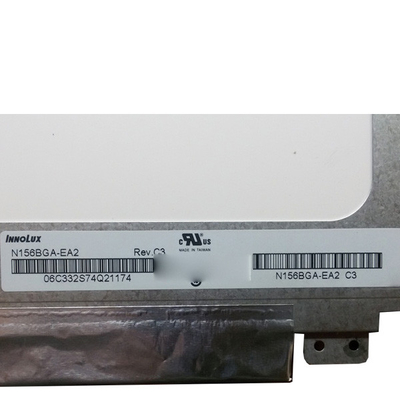

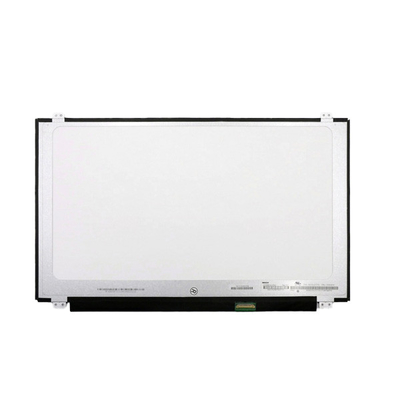

N156BGA-EA2 Slim TFT LCD Laptop Screen 1366X768 EDP 30PIN 15.6inch
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N156BGA-EA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N156BGA-EA2 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 (WXGA) 100PPI | Active Area: | 344.232 × 193.536 (H×V) |
| Outline Dim.: | 359.5 × 223.8 × 3.2 (H×V×D) | Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) |
| Color Depth: | 262K 45% NTSC | Designed For: | Laptop |
| High Light: | N156BGA-EA2 LCD Laptop Screen,WXGA LCD Laptop Screen |
||
Product Description
N156BGA-EA2 High Quality 15.6 slim led screen 1366*768 EDP 30PIN slim TFT LCD
N156BGA-EA2 Product details :
| Innolux LCD SCREEN N156BGA-EA2 | |
| Manufacturer | Innolux |
| Model Name | N156BGA-EA2 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 100PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.232 × 193.536 (H×V) |
| Outline(mm) | 359.5 × 223.8 × 3.2 (H×V×D) |
| Bezel Area(mm) | 347.36 × 196.84 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

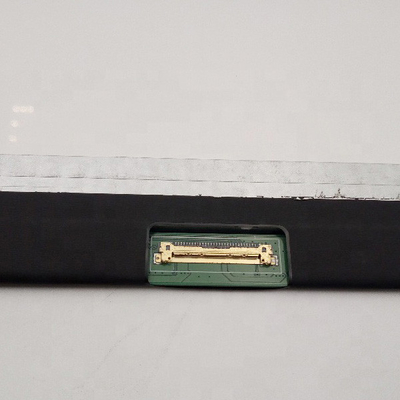

| Signal Type | eDP (1 Lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N156BGA-EA2 High Quality 15.6 slim led screen 1366*768 EDP 30PIN slim TFT LCD | |
Why choose us N156BGA-EA2 ?
♥ Solve your problems within 24 hours
♥ Very strict quantity control for each step
♥ Professional technology team and sale team
♥ Satisfactory pre-sale service & after-sale services
♥ 6 months warranty and free replacement within warranty period
N156BGA-EA2 Feature:
1. 100% Brand New and High Quality.
2. Easy install.
3. Used to replace your broken, damaged, cracked or unusable screen.
4. Each item has been tested and in good condition before shipping.
5. Shipped in protective bubble wrap and has all the protective screen.
N156BGA-EA2 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
N156BGA-EA2 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
N156BGA-EA2 Returns:
All returns must be notified before the return. We look forward to cooperating with rational and friendly customers. If you have any problems with the items you received, please contact us immediately.
Because the buyer ordered the wrong parts, the buyer needs to pay the replacement shipping cost.
The returned goods must have all original packaging and be in good condition.
All items will be tested before shipment. If you encounter any problems, please contact me first and I will try my best to solve it for you.
N156BGA-EA2 FAQ:
Q: How long is the warranty of N156BGA-EA2 ?
A: 90days warranty .
Q: How can I trace my order of N156BGA-EA2 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods N156BGA-EA2 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for N156BGA-EA2 ?
A: Of course!sample order is welcome !
N156BGA-EA2 Shipping and Package :
~ We will ship within 3 days since we receive the payments from the customers
~Shipping method:DHL,UPS,Fedex and your forwarder to pick up
~Package :Original factory package /Fragile Customized Package
