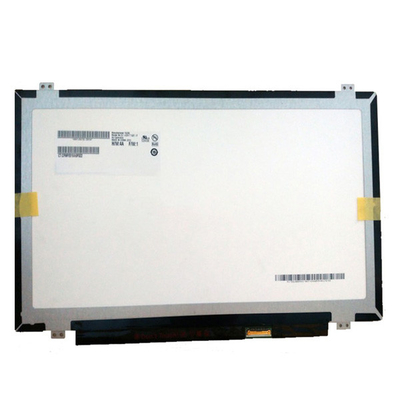

N140HGE-EA1 FHD LCD Display Panel 14.0 Inch Slim 30 Pins 262K 60% NTSC
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N140HGE-EA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N140HGE-EA1 | Diagonal Size: | 14.0 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 (FHD) 157PPI | Active Area: | 309.312 × 173.988 (H×V) |
| Outline Dim.: | 320.4 × 205.1 × 3 (H×V×D) | Viewing Angle: | 45/45/20/40 (Typ.)(CR≥10) |
| Color Depth: | 262K 60% NTSC | Designed For: | Laptop |
| High Light: | N140HGE-EA1 LCD Display Panel,NTSC LCD Display Panel |
||
Product Description
N140HGE-EA1 FHD lcd 14.0 inch slim 30 pins reliable quality display panel
N140HGE-EA1 Product details :
| Innolux LCD SCREEN N140HGE-EA1 | |
| Manufacturer | Innolux |
| Model Name | N140HGE-EA1 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.14 × 173.89 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
| Treatment | Antiglare (Haze 24%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 60% NTSC |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

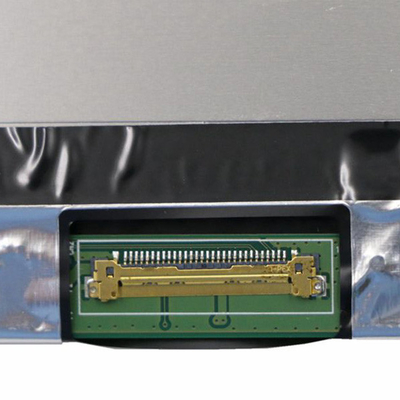

| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N140HGE-EA1 FHD lcd 14.0 inch slim 30 pins reliable quality display panel | |
Why choose us N140HGE-EA1 ?
♥ Solve your problems within 24 hours
♥ Very strict quantity control for each step
♥ Professional technology team and sale team
♥ Satisfactory pre-sale service & after-sale services
♥ 6 months warranty and free replacement within warranty period
N140HGE-EA1 Feature:
1. 100% Brand New and High Quality.
2. Easy install.
3. Used to replace your broken, damaged, cracked or unusable screen.
4. Each item has been tested and in good condition before shipping.
5. Shipped in protective bubble wrap and has all the protective screen.
N140HGE-EA1 Warning:
1.Please make sure your address is right
2.Before you sign for the parcel, Please check the packing in a good condition.
3.If you don't got the goods in 45 days, Please contract us.
4.We will give a full refund if the goods were return in original condition.
N140HGE-EA1 Delivery:
With years of export experience along with excellent quality, advanced services and competitive prices, YONGS has won numerous customers' trust and support.
Delivery time: Delivery the goods Within 3-7days after payment
Shipping: DHL, UPS, EMS, FEDEX and TNT service and fast(2-4days).
Tracking number will be provide for checking the shipping details
Packing: Packed with anti-static bag and bubble bag and foam box, Ensure keeping the parts clean and safe
N140HGE-EA1 Returns:
All returns must be notified before the return. We look forward to cooperating with rational and friendly customers. If you have any problems with the items you received, please contact us immediately.
Because the buyer ordered the wrong parts, the buyer needs to pay the replacement shipping cost.
The returned goods must have all original packaging and be in good condition.
All items will be tested before shipment. If you encounter any problems, please contact me first and I will try my best to solve it for you.
N140HGE-EA1 FAQ:
Q: When would you ship,IF I order N140HGE-EA1?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order Innolux N140HGE-EA1 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: Can you test 14.0 inch lcd panel N140HGE-EA1 before shipping?
A: Don't Worry , The N140HGE-EA1 will be tested ok before shipping.
Q: What happen if Innolux N140HGE-EA1 received can't work ?
A: Our Innolux N140HGE-EA1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
N140HGE-EA1 Shipping and Package :
~ We will ship within 3 days since we receive the payments from the customers
~Shipping method:DHL,UPS,Fedex and your forwarder to pick up
~Package :Original factory package /Fragile Customized Package
