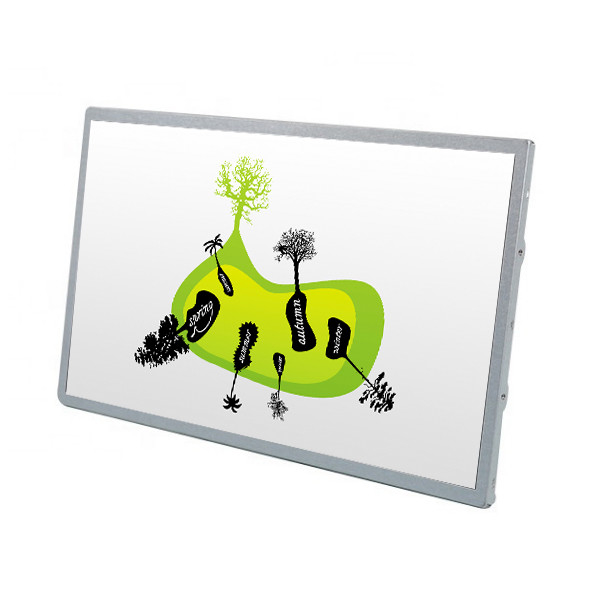

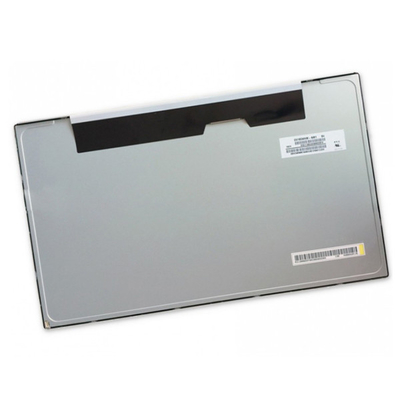

DV185WHM-NM1 BOE LCD Panel 18.5 Inch TFT LCD Display WXGA For Indoor Advertising Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV185WHM-NM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | DV185WHM-NM1 | Diagonal Size: | 18.5 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 [WXGA] 84PPI | Active Area: | 409.8(H)×230.4(V) Mm |
| Outline Dim.: | 430.4(H)×254.6(V)×11.4(D) Mm | Bezel Area: | 413.4(H)×234.0(V) Mm |
| Weight: | 1.30Kgs (Typ.) | Designed For: | Medical Imaging / Digital Signage |
| High Light: | DV185WHM-NM1 BOE LCD Panel,indoor advertising machine BOE LCD Panel,WXGA TFT LCD Display |
||
Product Description
DV185WHM-NM1 18.5 inch Display BOE TFT-LCD WXGA LCD Panel with 250 luminance for indoor advertising machine use
DV185WHM-NM1 Product details :
| BOE LCD SCREEN DV185WHM-NM1 | |
| Panel Brand | BOE |
| Panel Model | DV185WHM-NM1 |
| Panel Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA, 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Size | 430.4(W)×254.6(H) ×11.4(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 99% sRGB |
| Lamp Type | 6S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.30Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| DV185WHM-NM1 18.5 inch Display BOE TFT-LCD WXGA LCD Panel with 250 luminance for indoor advertising machine use | |
Why choose us DV185WHM-NM1 ?
♥ Solve your problems within 24 hours
♥ Very strict quantity control for each step
♥ Professional technology team and sale team
♥ Satisfactory pre-sale service & after-sale services
♥ 6 months warranty and free replacement within warranty period
DV185WHM-NM1 Feature:
1. 100% Brand New and High Quality.
2. Easy install.
3. Used to replace your broken, damaged, cracked or unusable screen.
4. Each item has been tested and in good condition before shipping.
5. Shipped in protective bubble wrap and has all the protective screen.
DV185WHM-NM1 Warning:
1.Please make sure your address is right
2.Before you sign for the parcel, Please check the packing in a good condition.
3.If you don't got the goods in 45 days, Please contract us.
4.We will give a full refund if the goods were return in original condition.
DV185WHM-NM1 Shipping and Package :
~ We will ship within 3 days since we receive the payments from the customers
~Shipping method:DHL,UPS,Fedex and your forwarder to pick up
~Package :Original factory package /Fragile Customized Package
DV185WHM-NM1 Delivery:
With years of export experience along with excellent quality, advanced services and competitive prices, YONGS has won numerous customers' trust and support.
Delivery time: Delivery the goods Within 3-7days after payment
Shipping: DHL, UPS, EMS, FEDEX and TNT service and fast(2-4days).
Tracking number will be provide for checking the shipping details
Packing: Packed with anti-static bag and bubble bag and foam box, Ensure keeping the parts clean and safe
DV185WHM-NM1 FAQ:
Q: Can You declare my order of DV185WHM-NM1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of DV185WHM-NM1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of DV185WHM-NM1 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
