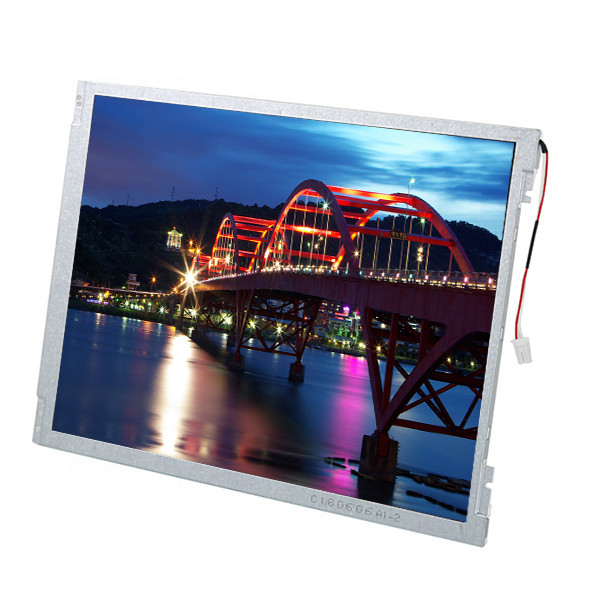

12.1 Inch TFT LCD Module Display BA121S01-200 RGB 800x600 SVGA 82PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BA121S01-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | BA121S01-200 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Active Area: | 246(H)×184.5(V) Mm |
| Outline Dim.: | 279(H)×209(V)×9.3(D) Mm | Bezel Area: | 249.05(H)×188.30(V) Mm |
| Weight: | 500g (Max.) | Designed For: | Industrial |
| High Light: | SVGA LCD Module Display,BA121S01-200 LCD Module Display |
||
Product Description
BA121S01-200 Original TFT 12.1 inch TFT LCD Module Display BA121S01-200
BA121S01-200 Product details :
| BOE LCD SCREEN BA121S01-200 | |
| Panel Brand | BOE |
| Panel Model | BA121S01-200 |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA,82PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.05(W)×188.30(H) mm |
| Outline Size | 279(W)×209(H) ×9.3(D) mm |
| Surface | Clear |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 55% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 500g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| BA121S01-200 Original TFT 12.1 inch TFT LCD Module Display BA121S01-200 | |
BA121S01-200 Product condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
BA121S01-200 Payment Term:
our company accept T/T, Western union,Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
BA121S01-200 Shipping and Package :
BA121S01-200 Shipping:
We can shipping all over the world by DHL, UPS,FEdex,TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs.
lt will take around 3-5 days to reach your hands.
BA121S01-200 Warranty:
Please confirm receipt of products if the items you received, and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution.
We only guarantee delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.
If you have any other questions please feel free to contact us.
BA121S01-200 FAQ:
Q: Can You declare my order of BA121S01-200 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods BA121S01-200 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of BA121S01-200 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of BA121S01-200 ?
A: The order will be shipped within 2-3 working days after received your payment.
