14.0 Inch EDP LCD Display Panel 1920X1080 N140HCE-EAA Chimei Innolux
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N140HCE-EAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | N140HCE-EAA | Panel Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD) 157PPI | Display Area: | 308.851 × 173.73 (H×V) |
| Outline Size: | 320.4 × 205.1 × 3 (H×V×D) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Color Depth: | 262K 45% NTSC | Application: | Laptop |
| High Light: | EDP lcd display panel,N140HCE-EAA lcd display panel |
||
Product Description

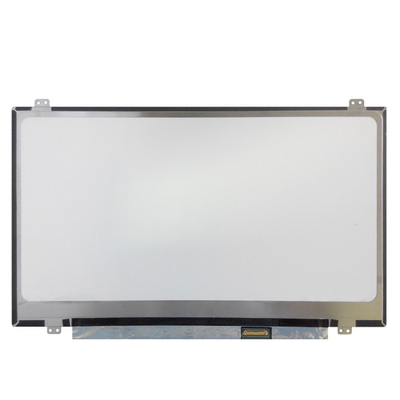

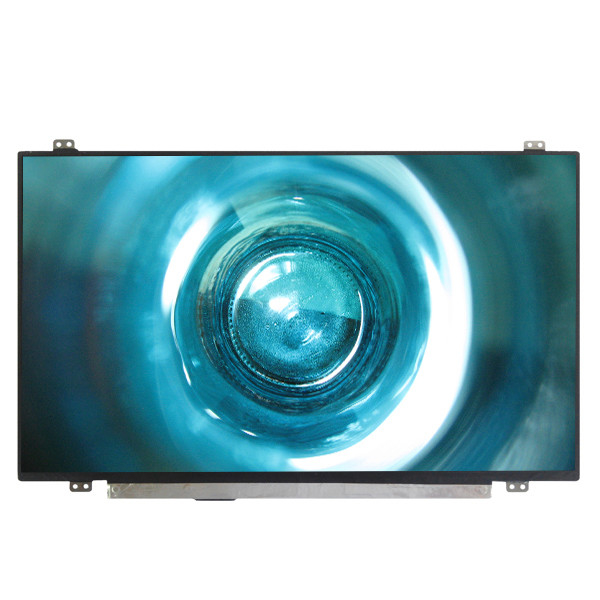

N140HCE-EAA Chimei Innolux 1920X1080 14.0 inch EDP lcd display panel
N140HCE-EAA Product details :
| Innolux LCD SCREEN N140HCE-EAA | |
| Manufacturer | Innolux |
| Model Name | N140HCE-EAA |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 308.851 × 173.73 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 4 strings WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

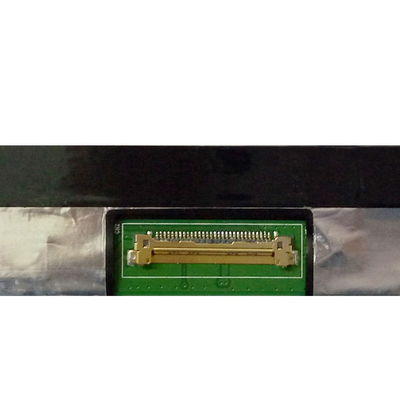

| Signal Type | eDP (2 Lane) , eDP1.2 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N140HCE-EAA Chimei Innolux 1920X1080 14.0 inch EDP lcd display panel | |
