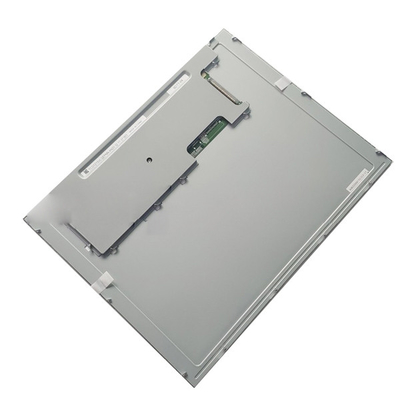

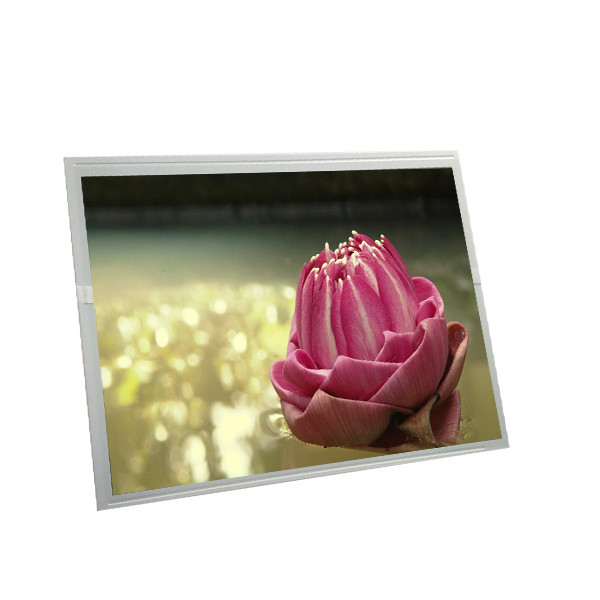

12.1 Inch Industrial LCD Display 800×600 SVGA 82PPI Kyocera TCG121SVLQEPNN-AN20
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG121SVLQEPNN-AN20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TCG121SVLQEPNN-AN20 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Active Area: | 246(H)×184.5(V) Mm |
| Outline Dim.: | 265(H)×207.7(V) ×10.1(D) Mm | Bezel Area: | 249.0(H)×187.5(V) Mm |
| Weight: | 670g | Designed For: | Industrial |
| High Light: | SVGA industrial LCD display,Antiglare industrial LCD display |
||
Product Description
TCG121SVLQEPNN-AN20 12.1 inch 800×600 KYOCERA LCD industrial lcd display
TCG121SVLQEPNN-AN20 Product details :
| Kyocera LCD SCREEN TCG121SVLQEPNN-AN20 | |
| Panel Brand | Kyocera |
| Panel Model | TCG121SVLQEPNN-AN20 |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA, 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Size | 265(W)×207.7(H) ×10.1(D) mm |
| Surface | Antiglare |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 650:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 50% NTSC |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 670g |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| TCG121SVLQEPNN-AN20 12.1 inch 800×600 KYOCERA LCD industrial lcd display | |
TCG121SVLQEPNN-AN20 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
TCG121SVLQEPNN-AN20 Payment:
1. We accept T/T(bank transfer), Western Union, Paypal for now.
2. Choosing Paypal need to pay extra 3% of total amount as handling charge.
3. If you have any problems of payment, please contact us freely.
TCG121SVLQEPNN-AN20 Shipping and Package :
TCG121SVLQEPNN-AN20 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
TCG121SVLQEPNN-AN20 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
TCG121SVLQEPNN-AN20 FAQ:
Q: Can you give me a discount if I need a large quantity of TCG121SVLQEPNN-AN20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TCG121SVLQEPNN-AN20 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of TCG121SVLQEPNN-AN20 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of TCG121SVLQEPNN-AN20 ?
A: Of course!If you make a large order, we will give you a discount.
